Product Description

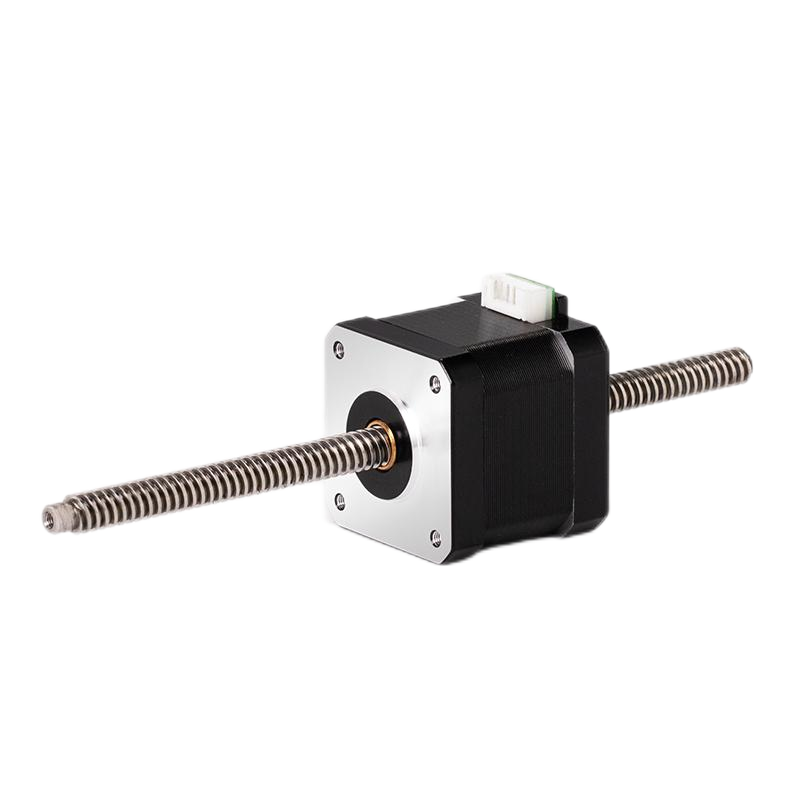

The KST-42D30-02GCZ-200-0016 Lead Screw Stepper Motor delivers 0.4Nm holding torque and a 2mm lead, making it a robust solution for precision automation. With a 1.8 step angle and a 0.01mm step length, this motor ensures high repeatability, ideal for applications such as laboratory automation, medical devices, and CNC systems.
Featuring a 175mm screw length, this motor is designed for medium-range installations. Its Class B insulation and 100M insulation resistance ensure reliable performance in demanding environments. The motors 260g weight and 57gcm rotor inertia provide stability and responsiveness, while the 1.5A rated current and 2 resistance optimize energy efficiency.
| Model | KST-42D30-02GCZ-200-0016 |
| Phases | 2 |
| Step Angle | 1.8 |
| Holding Torque(Nm) | 0.4 |
| Rated Current(A) | 1.5 |
| Resistance() | 2 |
| Inductance(mH) | 3.5 |
| Rotor Inertia(gcm) | 57 |
| Insulation Res. (M) | 100 |
| Insulation Class | B |
| Weight (g) | 260 |
| Step Length (mm) | 0.01 |
| Lead (P) | 2 |
| Screw Length (mm) | 175 |
Precision Performance for Demanding EnvironmentsBuilt for reliability, the KST-42D30-02GCZ-200-0016 Lead Screw Stepper Motor offers smooth and precise operation even in harsh outdoor conditions. Its IP65 rating ensures the motor remains unaffected by dust and water, making it ideal for diverse industrial settings. Totally enclosed construction provides an extra layer of safety and durability, promoting uninterrupted operation.
Quality Construction and MaterialsCrafted with a copper conductor and MS (Mild Steel) housing, this stepper motor is designed to last. The use of premium materials guarantees both excellent electrical conductivity and structural robustness. With each unit thoroughly tested and manufactured to high standards, you receive a dependable motion solution.
Versatile Applications Across IndustriesThis motor is perfect for use in automation, CNC machinery, and other systems requiring accurate linear motion. Exported from India and available to global markets, it meets diverse engineering needs with flexibility and consistent quality.
FAQs of KST-42D30-02GCZ-200-0016 Lead Screw Stepper Motor:
Q: How does the IP65 rating benefit the KST-42D30-02GCZ-200-0016 Lead Screw Stepper Motor?
A: The IP65 rating means the motor is fully protected against dust ingress and can withstand low-pressure water jets from any direction, making it suitable for outdoor and harsh industrial environments.
Q: What materials are used in this stepper motor, and what advantages do they offer?
A: This motor uses copper for conductors and MS (Mild Steel) for the body. Copper ensures high electrical conductivity, while MS provides durability and resistance to mechanical wear.
Q: When should I consider using a totally enclosed stepper motor?
A: A totally enclosed stepper motor is ideal when you need protection from external contaminants, debris, or moisture, especially in outdoor or demanding industrial applications.
Q: Where can this motor be utilized most effectively?
A: It is best suited for automation systems, CNC equipment, and industrial applications requiring reliable, precise, and protected linear motion, both indoors and outdoors.
Q: What is the process for ensuring product quality and reliability?
A: Every unit undergoes strict quality control, from material selection to final assembly and testing, ensuring consistent performance and adherence to international standards.
Q: How does the single-phase design influence the motors operation?
A: The single-phase design simplifies wiring and installation, making the motor suitable for a variety of standard power setups common in industrial and commercial facilities.
Q: What are the benefits of choosing this product from an Indian exporter, manufacturer, and supplier?
A: Sourcing from India offers advantages such as competitive pricing, adherence to quality standards, flexible supply, and responsive customer support across global markets.
