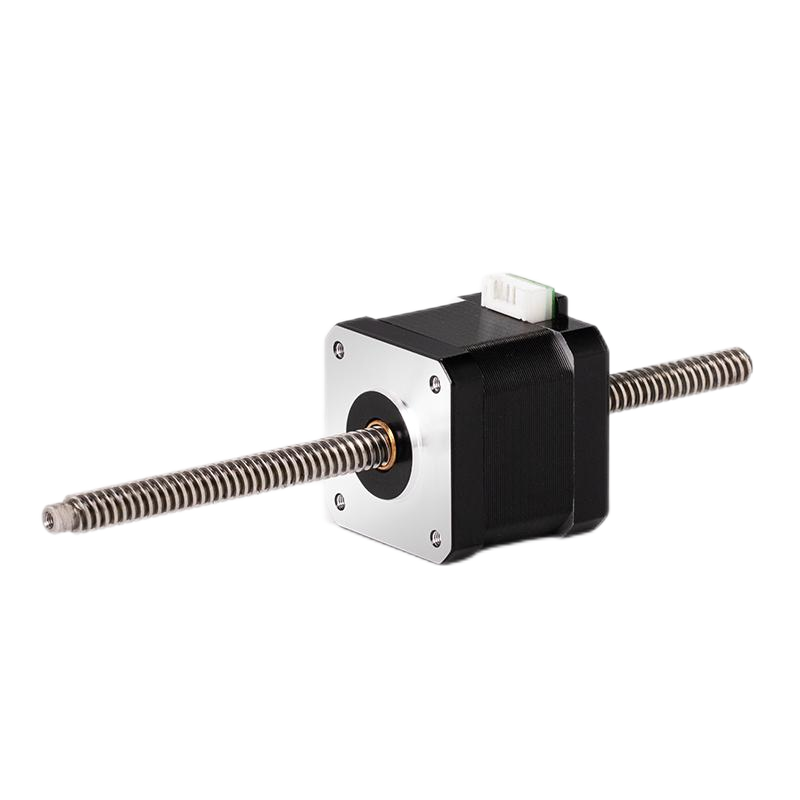

About KST-42D30-04LC-177X-0015 Lead Screw Stepper Motor
The KST-42D30-04LC-177X-0015 Lead Screw Stepper Motor delivers 0.46Nm holding torque and a 4.8mm lead, making it a powerful solution for industrial automation. With a 1.8 step angle and a 0.024mm step length, this motor ensures high repeatability, ideal for applications such as CNC machinery, automated assembly lines, and material handling systems.
Featuring a 177mm screw length, this motor is designed for extended travel applications. Its Class B insulation and 100M insulation resistance ensure reliable performance in demanding environments. The motors 400g weight and 82gcm rotor inertia provide stability and responsiveness, while the 1.5A rated current and 2 resistance optimize energy efficiency.
| Model | KST-42D30-04LC-177X-0015 |
| Phases | 2 |
| Step Angle | 1.8 |
| Holding Torque(Nm) | 0.46 |
| Rated Current(A) | 1.5 |
| Resistance() | 2 |
| Inductance(mH) | 3.85 |
| Rotor Inertia(gcm) | 82 |
| Insulation Res. (M) | 100 |
| Insulation Class | B |
| Weight (g) | 400 |
| Step Length (mm) | 0.024 |
| Lead (P) | 4.8 |
| Screw Length (mm) | 177 |
Advanced Design and DurabilityCrafted with a sturdy mild steel (MS) frame and copper winding, the KST-42D30-04LC-177X-0015 lead screw stepper motor is built to withstand demanding operational environments. Its electric starting mechanism and high-grade construction components ensure long-term durability and maintenance-free performance, making it an ideal choice for automation needs.
Precision Engineering for Versatile ApplicationsThis stepper motors integrated lead screw enables precise linear motion, ideal for CNC machinery, 3D printers, and robotic systems. As a manufacturer, distributor, and exporter in India, we ensure the motor meets global standards and versatile automation requirements, supporting diverse industries with reliable motion control solutions.
FAQs of KST-42D30-04LC-177X-0015 Lead Screw Stepper Motor:
Q: How do I properly install the KST-42D30-04LC-177X-0015 lead screw stepper motor?
A: To install the KST-42D30-04LC-177X-0015, secure the motor using its mounting holes, connect the electrical wires according to the color-coded diagram provided, and ensure the power supply matches the motors specifications. Once installed, follow the electric start procedure for smooth operation.
Q: What are the main benefits of using this lead screw stepper motor in my equipment?
A: This stepper motor offers precise and repeatable linear motion, enhanced by its high-quality copper conductor and robust mild steel construction. Its reliable performance and one-year warranty provide confidence and reduce operational downtime.
Q: Where is the KST-42D30-04LC-177X-0015 manufactured and exported from?
A: This stepper motor is manufactured and supplied by a leading Indian exporter, ensuring adherence to rigorous quality standards for both domestic and international markets.
Q: When can I expect to receive warranty support if any issues arise?
A: The product includes a 1-year warranty, and customers can access support during this period for any manufacturing defects or operational issues by contacting the supplier or manufacturer directly.
Q: What is the process to order this stepper motor from the supplier?
A: To place an order, contact the exporter or supplier via their website, email, or phone. Provide your requirements, and the sales team will guide you through the quotation, payment, and shipping process.
Q: How can this stepper motor be used in automation projects?
A: Its integrated lead screw allows for accurate linear positioning, making it suitable for use in CNC machinery, robotics, and industrial automation systems requiring precise movement control.
