Product Description

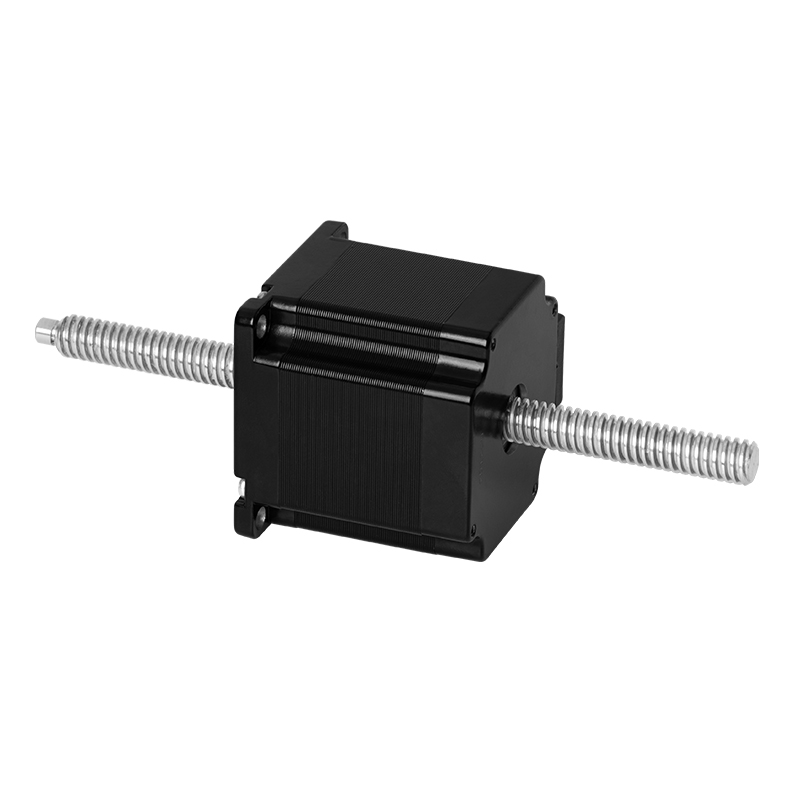

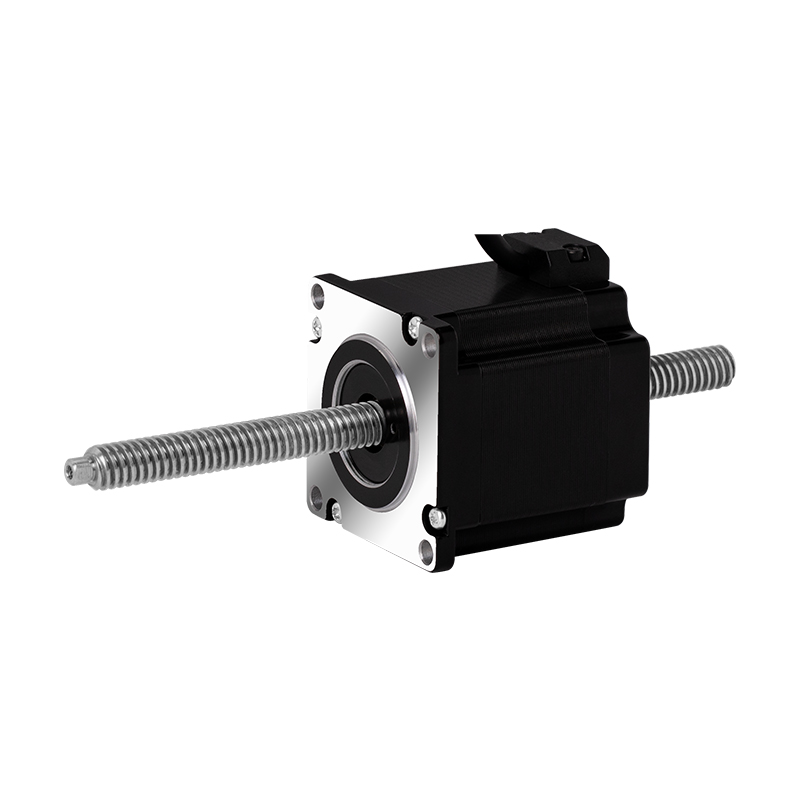

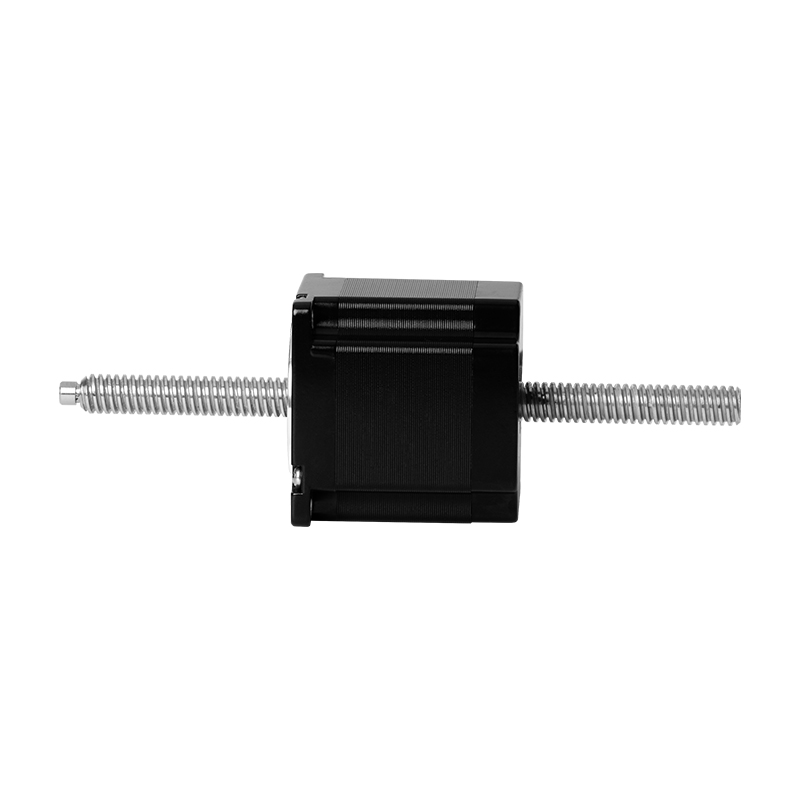

The KST-86D45-03GC-480-0003 Lead Screw Stepper Motor delivers 3.5Nm holding torque and a 3mm lead, making it a powerhouse for heavy-duty automation. With a 1.8 step angle and a 0.015mm step length, this motor ensures high repeatability, ideal for applications such as CNC machinery, automated assembly lines, and material handling systems.
Featuring a 480mm screw length, this motor is designed for extended travel applications. Its Class B insulation and 100M insulation resistance ensure reliable performance in demanding environments. The motors 1400g weight and 1400gcm rotor inertia provide exceptional stability and responsiveness, while the 4A rated current and 0.5 resistance optimize energy efficiency.
| Model | KST-86D45-03GC-480-0003 |
| Phases | 2 |
| Step Angle | 1.8 |
| Holding Torque(Nm) | 3.5 |
| Rated Current(A) | 4 |
| Resistance() | 0.5 |
| Inductance(mH) | 3.7 |
| Rotor Inertia(gcm) | 1400 |
| Insulation Res. (M) | 100 |
| Insulation Class | B |
| Weight (g) | 1400 |
| Step Length (mm) | 0.015 |
| Lead (P) | 3 |
| Screw Length (mm) | 480 |
Robust Enclosure for SafetyThe KST-86D45-03GC-480-0003 is built with a totally enclosed structure to protect against dust, moisture, and accidental contact. This ensures safer and uninterrupted performance in industrial environments, minimizing maintenance and downtime.
Precision with Lead Screw DesignIntegrating a high-quality lead screw, this stepper motor delivers smooth movement and precise control. It is ideal for automated machinery and CNC equipment, enhancing accuracy in repetitive tasks for manufacturers and OEMs alike.
FAQs of KST-86D45-03GC-480-0003 Lead Screw Stepper Motor:
Q: How is the KST-86D45-03GC-480-0003 lead screw stepper motor typically used?
A: This stepper motor is commonly used in CNC machines, 3D printers, automated conveyors, and robotics to achieve accurate linear motion with high repeatability. Its precision makes it suitable for both industrial and laboratory environments.
Q: What features make this stepper motor stand out from competitors?
A: The KST-86D45-03GC-480-0003 stands out thanks to its totally enclosed body, which offers extra protection, its single-phase electric start feature for easy operation, and the use of a high-precision lead screw for smooth and stable performance.
Q: When should I consider replacing or servicing this stepper motor?
A: With normal operating conditions, regular inspection every 612 months is advisable. However, if theres any noticeable drop in performance, irregular motion, or unusual noise, it is wise to inspect and possibly replace or service the motor promptly.
Q: Where is the KST-86D45-03GC-480-0003 manufactured and exported from?
A: This model is manufactured, exported, and supplied directly from India, adhering to global standards of quality. As an established exporter, we provide dependable worldwide service and support.
Q: What is the process for installation and startup of this motor?
A: To install the motor, securely mount it to the equipment, connect the wiring as per the single-phase configuration, and ensure the area is clear for safe electric start. Detailed installation manuals and customer support are provided for a smooth setup.
Q: What are the primary benefits of using this lead screw stepper motor in industrial applications?
A: Key benefits include superior quality, long service life, and highly accurate control of movement. The totally enclosed design further reduces contamination risks, while the 1-year warranty provides added peace of mind.
