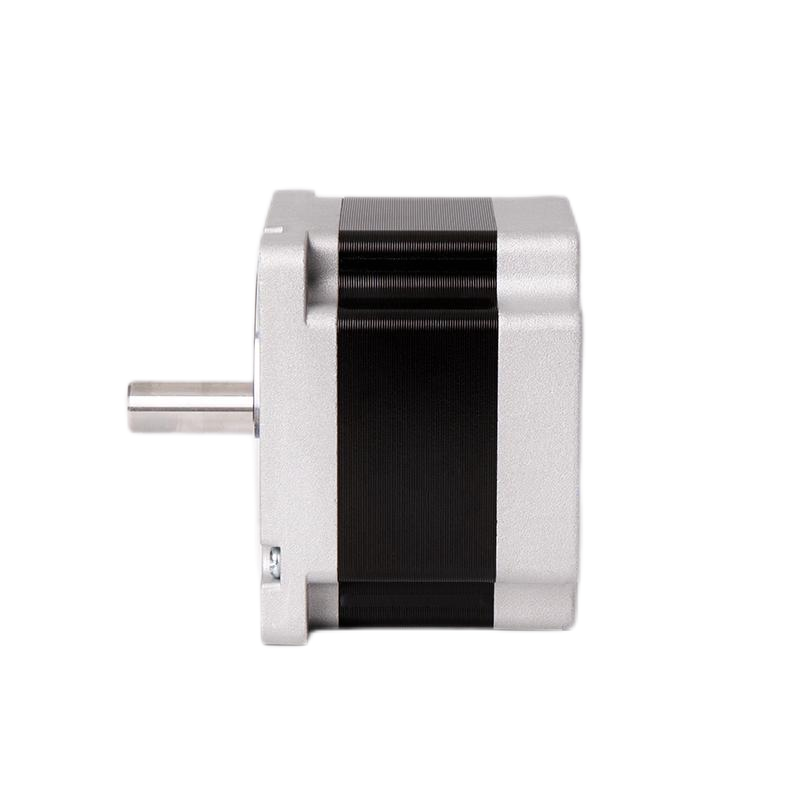

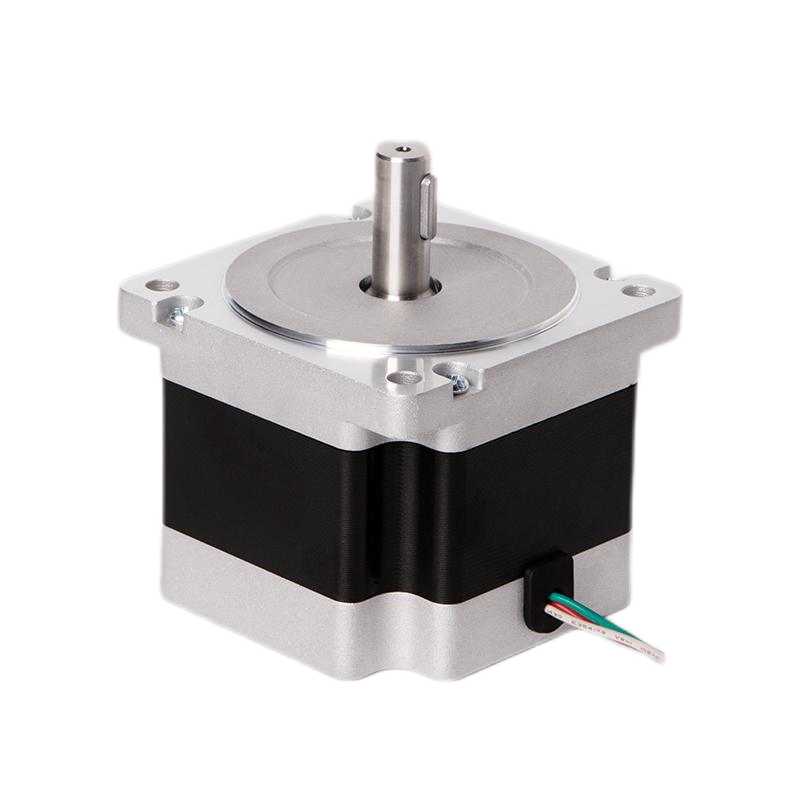

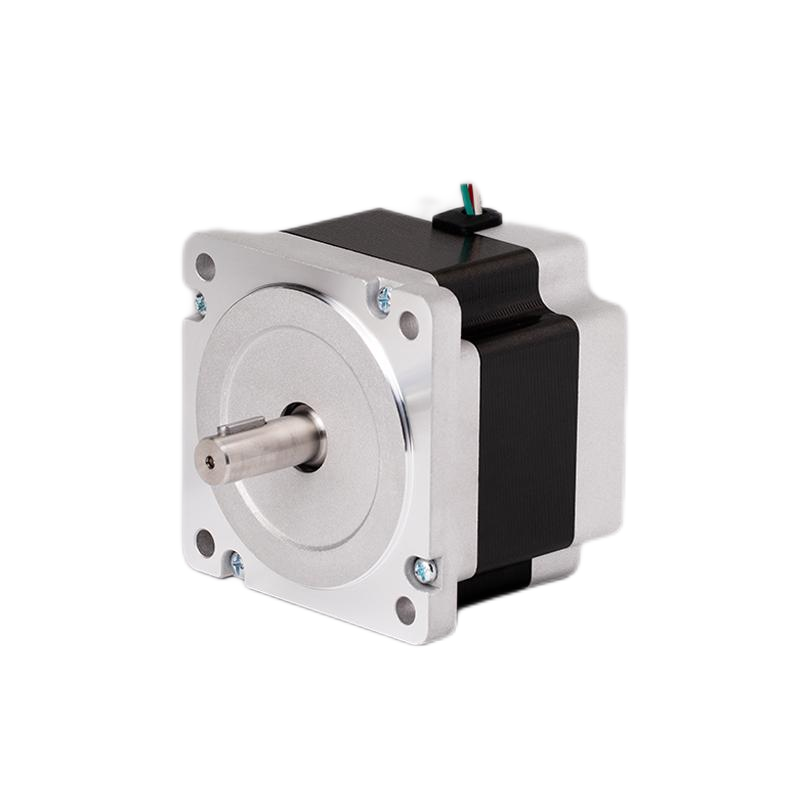

KST-86E33-0001 Three-Phase Unipolar Stepper Motor

KST-86E33-0001 Three-Phase Unipolar Stepper Motor

Name: KST-86E33-0001 Three-Phase Unipolar Stepper Motor
Brand: Guangdong Kaifull Electronics Technology Co., Ltd.
Price: 60.0 USD
Availability: InStock

60.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Rated Voltage 24 Volt (V)
Frequency 50 Hertz (HZ)
Product Type Motor
Phase Three Phase
Starting Type Electric Start
Color Black & Silver
Warranty 1 Year
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

KST-86E33-0001 Three-Phase Unipolar Stepper Motor Price And Quantity

Minimum Order Quantity 1 Piece
Price 60.0 USD ($)/Piece

KST-86E33-0001 Three-Phase Unipolar Stepper Motor Product Specifications

Phase Three Phase
Warranty 1 Year
Color Black & Silver
Rated Voltage 24 Volt (V)
Frequency 50 Hertz (HZ)
Starting Type Electric Start
Product Type Motor

Product Description

The KST-86E33-0001 is a three-phase unipolar stepper motor with 1.2 step angle, 2.0Nm holding torque, and 5.8A rated current. Ideal for precision motion control in robotics, CNC machines, and automation systems. Features a 36V DC drive voltage, high positional accuracy of 0.06, and excellent dielectric strength of 500V AC.

Whatsapp:+86 15014766586

ITEM

SPECIFICATION

DUTY

CONTINUOUS

DRIVE VOLTAGE

36 V D.C

RATED CURRENT

5.8 A (PHASE)

STEP ANGLE

1.2(DEG) FULL STEP

NUMBER OF PHASE

3PHASE UNIPOLAR 3PHASE EXCITING

INSULATION CLASS(UL)

UL CLASS B (COIL)

WINDING RESISTANCE

0.3520%

WINDING INDUCTANCE

1.2mH20%

HOLDING TORQUE

2.0Nm(21kgfcm) MIN.

DETENT TORQUE

500mNm(500gfcm) REF.

MAX STARTING PULSE RATE

1200PPS MIN.

POSITIONAL ACCURACY

0.06(DEG) MAX.

DIELECTRIC STRENGTH

500V A.C 1MINUTE NO ABNORMAL

INSULATION RESISTANCE

100 M MIN.

TEMPERATURE RISE

80 K (80 DEG ) MAX.
