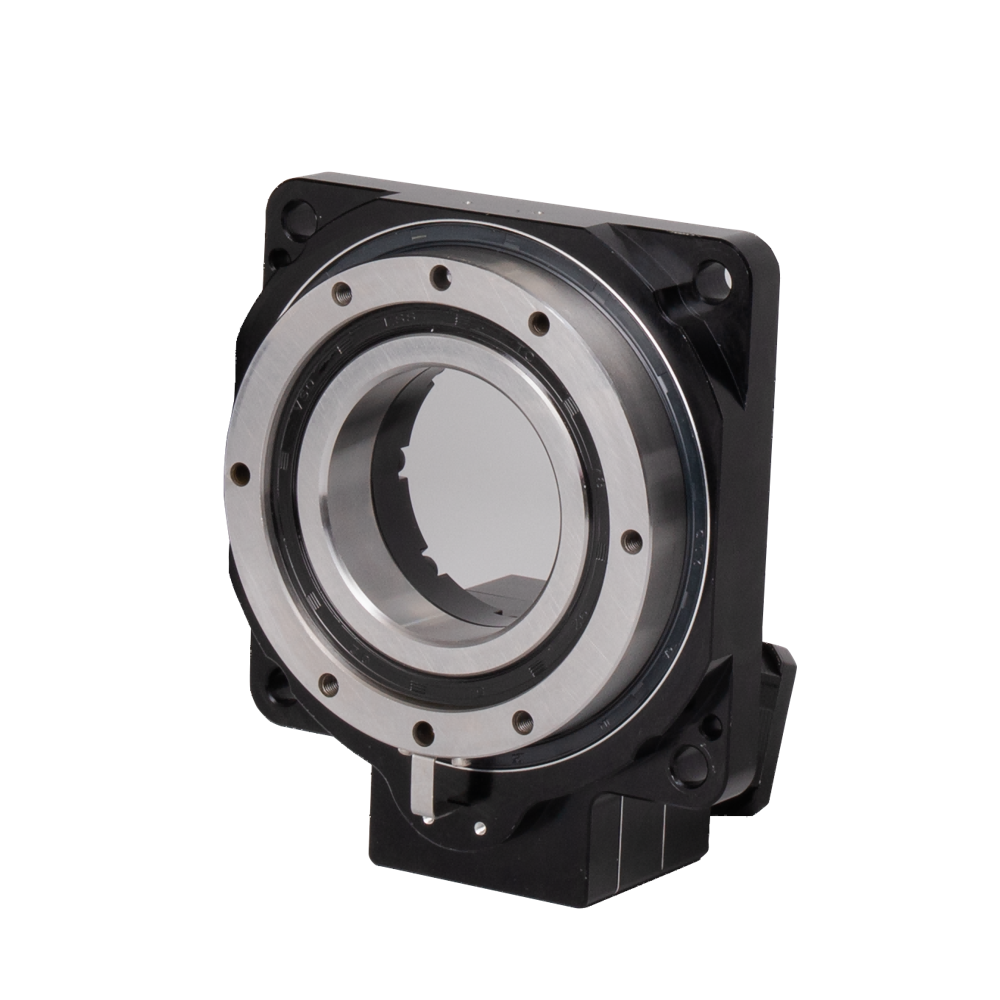

About YKW130K-30V1 Rotary Platform
The YKW130K-30V1 rotary platform is an advanced solution for precision motion control in industrial and automation settings. It provides a powerful torque capacity of 45 Nm, accommodates axial loads up to 100 kg, and endures radial forces of 60 Nm. Featuring a reduction ratio of 30, the platform allows for smooth disk rotations at speeds of up to 720/sec. Its exceptional positioning accuracy ranges from 5 to 8 arc-min, with a repetitive positioning accuracy of 2030 arc-sec, ensuring reliable performance in exacting tasks.
This model integrates the V1 motor interface, characterized by a 14mm shaft diameter, a PCD of 70, and M4 mounting threads, ensuring adaptability with various motor systems. Weighing 4.2 kg and rated at IP40 for ingress protection, it is robust and built to withstand demanding environments. With an accuracy life of over 15,000 cycles during intermittent operations, the platform ensures long-lasting precision for industrial applications.
| Model/Specification | YKW130K-30V1 |
| Allowable torque Nm | 45 |
| Allowable axial load (Ka)kg | 100 |
| Allowable radial force (Fr)Nm | 60 |
| Allowable disk Rotation speed | 720/sec |
| Reduction ratio i | 30 |
| Positioning accuracy | 8arc-min
5arc-min |
| Repetitive positioning accuracy | 30arc-sec
20arc-sec |
| Accuracy life(intermittent operation) | 15000 |
| IP(Ingress Protection) | IP40 |
| Mass kg | 4.2 |
| Motor specification | V1:=14PCD:=PCD70M=M4 |
Superior Build QualityCrafted from stainless steel, the YKW130K-30V1 Rotary Platform is designed for lasting strength and corrosion resistance. This makes it suitable for demanding industrial settings where reliability is critical.
High Efficiency PerformanceWith a 90% efficiency rate and 200 W rated power, the rotary platform ensures efficient energy use. Bidirectional movement increases operational flexibility and improves productivity in a range of tasks.
Industry Leading ExporterAs a trusted exporter, manufacturer, and supplier in India, we deliver the YKW130K-30V1 Rotary Platform to a global clientele, ensuring timely supply and top-notch after-sales support for varied industrial needs.
FAQs of YKW130K-30V1 Rotary Platform:
Q: How is the YKW130K-30V1 Rotary Platform used in industrial applications?
A: This rotary platform is widely employed in automation, assembly lines, and precision positioning systems, where its bidirectional movement and high efficiency enhance productivity and operational accuracy.
Q: What makes the construction of the YKW130K-30V1 Rotary Platform reliable?
A: Manufactured from premium stainless steel, the platform offers excellent durability and resistance to wear and corrosion, making it well-suited for intensive industrial use.
Q: When should I consider using the YKW130K-30V1 Rotary Platform?
A: Choose this rotary platform when you require high efficiency (90%), robust construction, and reliable power (200 W) for industrial tasks that demand precise and repeatable motion control.
Q: Where can the YKW130K-30V1 Rotary Platform be sourced?
A: The rotary platform is available directly from us as an established exporter, manufacturer, and supplier based in India. Our network supports global shipping to meet diverse industrial demands.
Q: What is the process for installing the YKW130K-30V1 Rotary Platform?
A: Installation is straightforward thanks to its standard sizes, allowing seamless integration with existing industrial equipment. It comes with detailed instructions and after-sales support for smooth setup.
Q: What are the key benefits of using the YKW130K-30V1 Rotary Platform?
A: The main advantages include high operational efficiency, bidirectional control for versatile movement, durable stainless steel construction, and compatibility with standard industrial setups.
