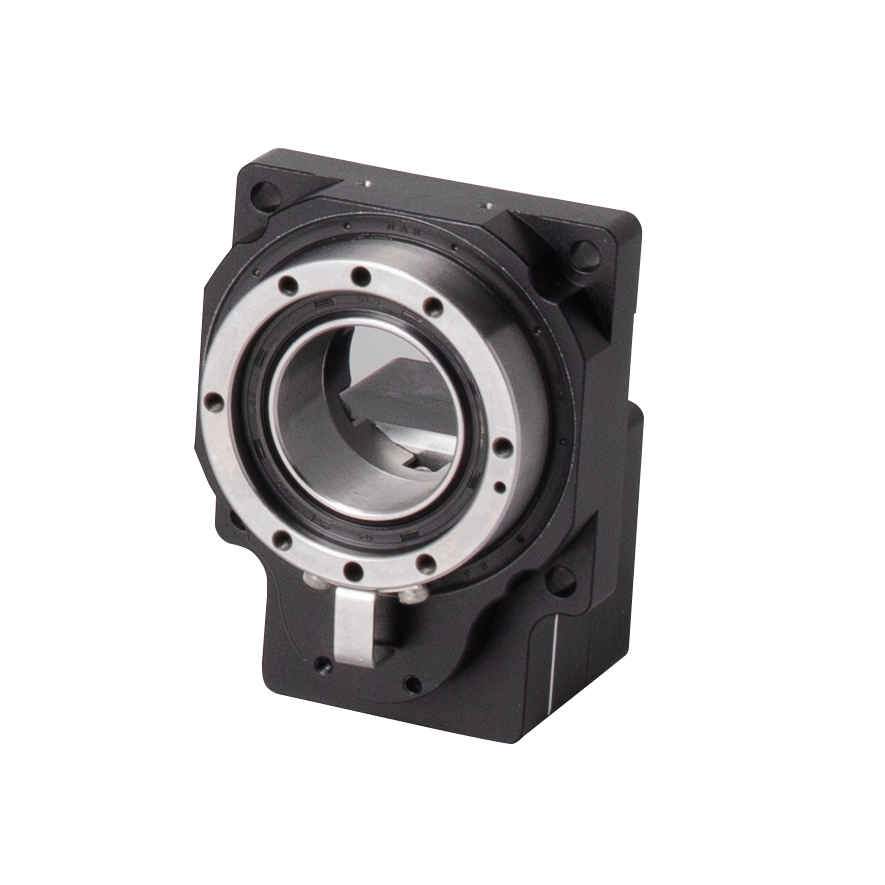

About YKW60P-20T1 High-Precision Hollow Rotary Platform
The YKW60P-20T1 hollow rotary platform is engineered for high-torque, high-precision applications in the automation and manufacturing sectors. With an allowable torque of 5 N.m and support for axial loads up to 10 kg, this rotary platform is perfect for demanding industrial environments. It offers a 20:1 reduction ratio, providing excellent control over positioning with a positioning accuracy of 5 arc-min. The platform ensures consistent performance with a repetitive positioning accuracy of 20 arc-sec, making it ideal for use in systems where precision is critical.
Capable of disk rotation speeds up to 720 per second, the YKW60P-20T1 combines high speed and accuracy, allowing it to meet the needs of fast-paced automation processes. Its longevity is also a key feature, with an accuracy lifespan of over 15,000 cycles in intermittent operation. This ensures sustained high-performance in extended use cases.
Built with a compact yet robust design, the platform is IP40-rated for protection against dust and other particles, increasing its durability. Weighing 1.5 kg, it is suitable for a variety of setups and allows for easy integration into complex mechanical systems, thanks to its hollow design. This facilitates the passage of cables and additional components, making it adaptable for various automation needs.
| Model/Specification | YKW60P-20T1 |
| Allowable torque Nm | 5 |
| Allowable axial load (Ka)kg | 10 |
| Allowable radial force (Fr)Nm | 5 |
| Allowable disk Rotation speed | 720/sec |
| Reduction ratio i | 20 |
| Positioning accuracy | 5arc-min |
| Repetitive positioning accuracy | 20arc-sec |
| Accuracy life(intermittent operation) | 15000 |
| IP(Ingress Protection) | IP40 |
| Mass kg | 1.5 |
| Motor specification | T1:=5PCD:=PCD43.8M=M3 |
High Efficiency and Build QualityThis rotary platform boasts a remarkable 90% efficiency rating, ensuring minimal energy loss and optimal mechanical performance. Constructed entirely from stainless steel, it resists corrosion and wear, providing longevity even in demanding industrial settings. The sleek black finish adds an extra layer of protection and contemporary style.
Versatile Industrial ApplicationsSuitable for a broad spectrum of industrial uses, the YKW60P-20T1 operates smoothly in both directions (bidirectional) and can be easily integrated into existing systems. Its voltage compatibility (110-215V) and standard sizes allow for seamless installation within various automation and robotics frameworks, making it a versatile choice for manufacturers.
FAQs of YKW60P-20T1 High-Precision Hollow Rotary Platform:
Q: How does the YKW60P-20T1 rotary platform improve industrial precision?
A: The YKW60P-20T1 is engineered with advanced design and stainless steel construction, providing high mechanical accuracy and stability for automation tasks. Its high efficiency (90%) ensures precise rotational movement, making it ideal for applications requiring reliable positioning.
Q: What is the typical usage of this high-precision hollow rotary platform?
A: This rotary platform is primarily used in industrial automation, robotics, and manufacturing systems. It facilitates accurate motion control, assembly lines, packaging, and inspection processes due to its precision and robust construction.
Q: When should I consider using a hollow rotary platform over conventional models?
A: A hollow rotary platform is beneficial when you need a central pass-through for cabling, pneumatic lines, or other functional elements, and when space-saving and precise positioning are critical. Its optimal for complex automation or robot arms in industrial environments.
Q: Where is the YKW60P-20T1 manufactured and exported from?
A: This model is manufactured, supplied, and exported from India, with strict adherence to quality standards. It is available for industrial clients across various regions, supported by a reputable exporter and manufacturer network.
Q: What is the process for installing the YKW60P-20T1 rotary platform?
A: Installation involves mounting the platform at the designated site, connecting it to a compatible power source (110-215V), and integrating it with your control or automation system. Standard sizing simplifies the fitting and connection processes.
Q: What are the main benefits of using this platform in industrial setups?
A: Key advantages include high operational efficiency (90%), durability from stainless steel construction, bidirectional movement, and ease of integration with various industrial systems. These qualities lead to higher productivity and reduced maintenance costs.
