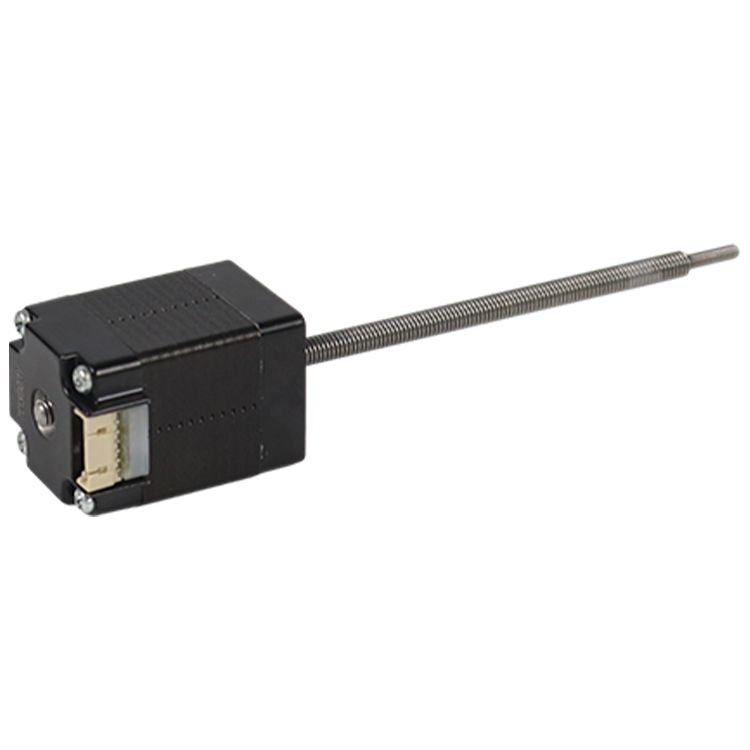

About KST-20D15-01GC-100-0004 Lead Screw Stepper Motor
The KST-20D15-01GC-100-0004 Lead Screw Stepper Motor is designed for ultra-precise motion control, delivering 0.018Nm holding torque and a fine 0.6mm lead. With a 1.8 step angle and an exceptional 0.003mm step length, this motor ensures ultra-high repeatability, making it perfect for applications such as microscopy stages, optical alignment, and micro-dispensing systems.
Featuring a 100mm screw length, this motor is ideal for compact installations. Its Class B insulation and 100M insulation resistance guarantee reliable performance in demanding environments. The lightweight design (60g) and low rotor inertia (2gcm) enable rapid start-stop cycles, while the 0.6A rated current and 6.5 resistance optimize energy efficiency.
| Model | KST-20D15-01GC-100-0004 |
| Phases | 2 |
| Step Angle | 1.8 |
| Holding Torque(Nm) | 0.018 |
| Rated Current(A) | 0.6 |
| Resistance() | 6.5 |
| Inductance(mH) | 1.7 |
| Rotor Inertia(gcm) | 2 |
| Insulation Res. (M) | 100 |
| Insulation Class | B |
| Weight (g) | 60 |
| Step Length (mm) | 0.003 |
| Lead (P) | 0.6 |
| Screw Length (mm) | 100 |
Robust Construction for Industrial UseEngineered with a totally enclosed structure, the KST-20D15-01GC-100-0004 lead screw stepper motor is built for demanding environments. Its reliable single-phase design ensures effective protection from dust and contaminants, supporting long-term, uninterrupted operation in various manufacturing settings.
Seamless Integration and Simple OperationThe included power cable and straightforward installation process make it easy to incorporate this motor into existing systems. Its universal compatibility with automation platforms streamlines setup, reducing downtime and increasing productivity for exporters, manufacturers, and suppliers.
Comprehensive After-Sales SupportWith a one-year warranty and responsive customer service, this lead screw stepper motor offers peace of mind and dependable support. Dealers across India ensure prompt assistance and service for hassle-free ownership.
FAQs of KST-20D15-01GC-100-0004 Lead Screw Stepper Motor:
Q: How is the KST-20D15-01GC-100-0004 lead screw stepper motor installed?
A: The motor is designed for easy installation with its single-phase configuration and pre-attached power cable. Space the mounting points as per the manual, connect the power cable, and ensure that the unit is securely fixed before powering up.
Q: What are the main benefits of using this stepper motor in industrial applications?
A: This stepper motor delivers precise linear motion with high reliability, thanks to its good-quality construction and totally enclosed design. It is ideal for environments where consistent performance and protection from environmental factors are critical.
Q: Where can I purchase genuine KST-20D15-01GC-100-0004 motors and obtain support?
A: You can acquire this stepper motor directly from authorized exporters, manufacturers, and suppliers across India, who also offer full product support and after-sales service.
Q: When does the product warranty begin and what does it cover?
A: The one-year warranty starts from the date of purchase and covers any manufacturing defects or failures under normal industrial usage conditions.
Q: What is the process for replacing a defective motor under warranty?
A: Contact the supplier or manufacturer with your purchase details. After verification, they will guide you through the process of returning the defective unit and provide a replacement according to the warranty terms.
Q: How can this lead screw stepper motor be used in automation systems?
A: It integrates smoothly with industrial automation setups requiring linear motion, enabling accurate positioning for CNC machines, robotics, packaging equipment, and more.
