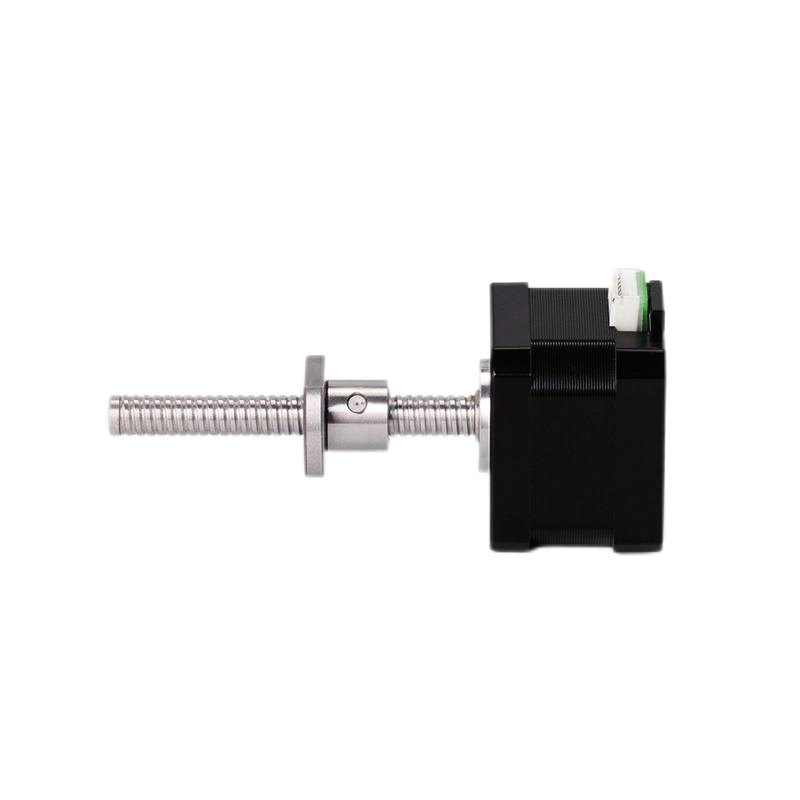

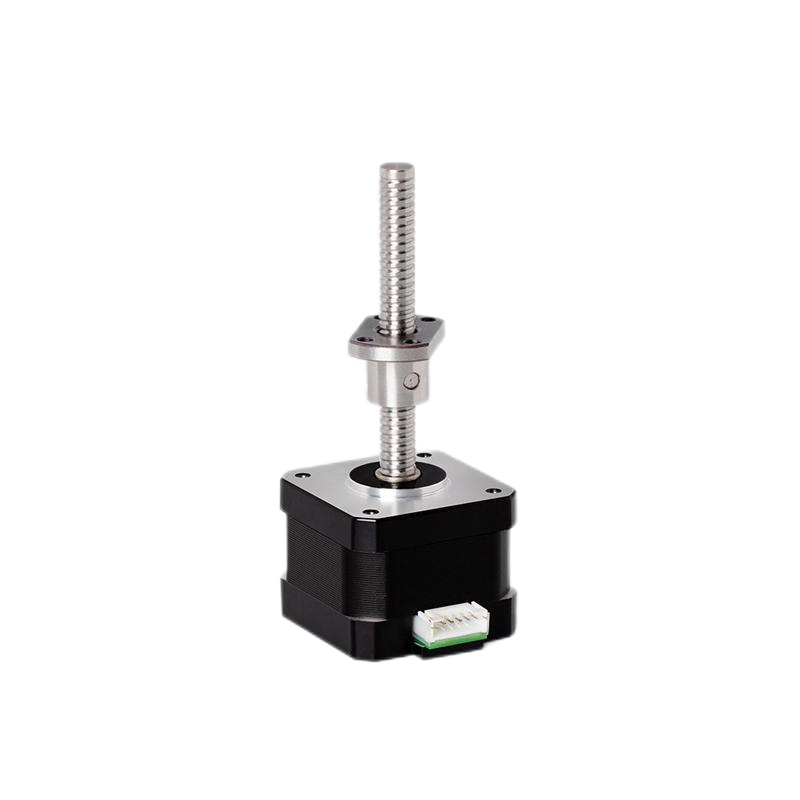

KST-20D25-001GZ-100-006 Lead Screw Stepper Motor - 0.022Nm Holding Torque, 1mm Lead, 1.8 Step Angle for Precision Motion Systems
Product Description
The KST-20D25-001GZ-100-006 Lead Screw Stepper Motor is engineered for precision motion control, delivering 0.022Nm holding torque and a 1mm lead. With a 1.8 step angle and a fine 0.005mm step length, this motor ensures high repeatability, making it ideal for applications such as laboratory automation, medical devices, and small-scale CNC systems.
Featuring a 100mm screw length, this motor is designed for compact installations. Its Class B insulation and 100M insulation resistance ensure reliable performance in demanding environments. The motors 180g weight and 3gcm rotor inertia provide stability and responsiveness, while the 0.6A rated current and 9 resistance optimize energy efficiency.
| Model | KST-20D25-001GZ-100-006 |
| Phases | 2 |
| Step Angle | 1.8 |
| Holding Torque(Nm) | 0.022 |
| Rated Current(A) | 0.6 |
| Resistance() | 9 |
| Inductance(mH) | 3 |
| Rotor Inertia(gcm) | 3 |
| Insulation Res. (M) | 100 |
| Insulation Class | B |
| Weight (g) | 180 |
| Step Length (mm) | 0.005 |
| Lead (P) | 1 |
| Screw Length (mm) | 100 |
High-Efficiency, Durable BuildEngineered with IE4 efficacy, the KST-20D25-001GZ-100-006 ensures lower energy consumption without compromising output. Its mild steel housing and copper conductor provide durability and excellent conductivity, making it suitable for demanding industrial environments.
Versatile Industrial ApplicationsThis lead screw stepper motor is ideal for use in machine tools, positioning systems, and industrial automation. Its reliable single-phase operation and consistent torque make it perfect for precision-driven industrial processes.
Trusted Indian Manufacturing and SupportManufactured and supplied by established exporters in India, this stepper motor comes with a 1-year warranty, underlining its quality. Comprehensive support and service ensure your operational needs are met efficiently.
FAQs of KST-20D25-001GZ-100-006 Lead Screw Stepper Motor:
Q: How can the KST-20D25-001GZ-100-006 stepper motor benefit industrial automation?
A: This stepper motor delivers precise movement and positioning, which is essential for automation tasks. Its IE4 efficiency helps reduce operational costs while maintaining high performance in industrial setups.
Q: What materials are used in the construction of this motor, and why does it matter?
A: The motor features mild steel (MS) for the housing and a copper conductor, offering durability and excellent current conductivity. These materials ensure longevity and reliable operation under industrial loads.
Q: When should I consider replacing or servicing the stepper motor?
A: While the motor is designed for durability and comes with a 1-year warranty, regular inspections based on usage intensity are recommended. Consider servicing if you notice unusual noises, reduced efficiency, or irregular step movements.
Q: Where is the KST-20D25-001GZ-100-006 primarily manufactured and supplied from?
A: This motor is manufactured, exported, and supplied by reputable companies in India, ensuring adherence to international quality standards.
Q: What is the typical process for installing this lead screw stepper motor?
A: Installation involves securely mounting the motor, connecting the copper conductors to the control system, and aligning the lead screw with the operational mechanism. Professional installation is advised for optimal performance and safety.
Q: How is the warranty for the KST-20D25-001GZ-100-006 structured?
A: The product includes a 1-year warranty covering manufacturing defects. Support is typically offered by the supplier or manufacturer, with clear processes for assistance and replacement if required.
