Product Description

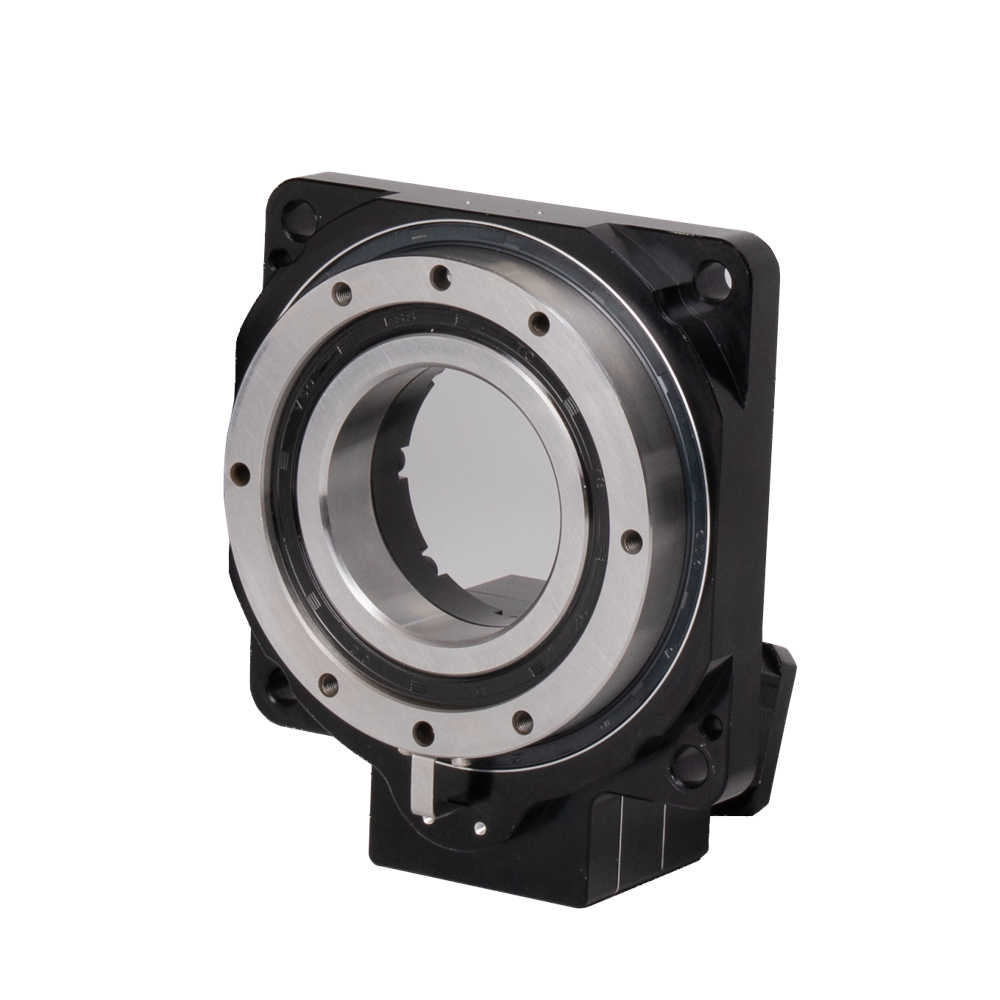

The YKW130K-18T1 rotary platform is engineered for high precision and robust performance in a variety of industrial applications. With an allowable torque of 20 N.m, this platform is capable of supporting axial loads of up to 100 kg and radial forces of 60 N.m, making it ideal for demanding operational environments. The platform can achieve a maximum rotation speed of 720 per second, providing rapid response times for applications that require swift movement.
Featuring an 18:1 reduction ratio, the YKW130K-18T1 allows for precise control over torque delivery and rotational speed, ensuring that tasks requiring high accuracy can be executed efficiently. The platforms positioning accuracy is rated at 3 arc-min, with a repetitive positioning accuracy of 15 arc-sec, making it suitable for applications where precision is crucial.
Designed for longevity, the YKW130K-18T1 boasts an impressive accuracy life of over 15,000 cycles during intermittent operation, ensuring durability and reliability in challenging conditions. With an IP40 ingress protection rating, this rotary platform is protected against dust and debris, enhancing its operational lifespan.
Weighing 2.8 kg, the YKW130K-18T1 integrates seamlessly into various systems, with a motor specification compatible with T1 motors featuring a shaft diameter of 8 and a PCD of 66.67, utilizing M4 mounting.
The YKW130K-18T1 is the ideal choice for applications requiring precision, durability, and efficient torque management in rotary motion.
| Model/Specification | YKW130K-18T1 | | Allowable torque Nm | 20 | | Allowable axial load (Ka)kg | 100 | | Allowable radial force (Fr)Nm | 60 | | Allowable disk Rotation speed | 720/sec | | Reduction ratio i | 18 | | Positioning accuracy | 3arc-min | | Repetitive positioning accuracy | 15arc-sec | | Accuracy life(intermittent operation) | 15000 | | IP(Ingress Protection) | IP40 | | Mass kg | 2.8 | | Motor specification | T1:=8PCD:=PCD66.67M=M4 | |
Exceptional Build QualityConstructed using stainless steel, the YKW130K-18T1 rotary platform offers superior resistance to corrosion and wear. Its sturdy design enhances performance while ensuring a long operational life, even in challenging industrial settings.
High Efficiency and PowerOperating at 90% efficiency and backed by a 200 W motor, this rotary platform handles demanding tasks with ease. It supports bidirectional operation, making it adaptable for diverse applications in industrial automation.
FAQs of YKW130K-18T1 High-Performance Rotary Platform:
Q: How is the YKW130K-18T1 High-Performance Rotary Platform used in industrial applications?
A: The rotary platform is widely applied in automated assembly lines, robotics, and precise positioning tasks, delivering smooth and reliable bidirectional rotation, which enhances productivity and operational efficiency.
Q: What benefits does the stainless steel construction offer for this rotary platform?
A: Stainless steel provides excellent corrosion resistance and strength, ensuring the platform maintains structural integrity and operates reliably in harsh or high-moisture industrial environments.
Q: When should you consider using the YKW130K-18T1 over other rotary platforms?
A: This platform is ideal when you require a combination of high efficiency (90%), bidirectional rotation, and durable construction for long-term, precise industrial tasksparticularly where space and standard sizing are important.
Q: Where can you source the YKW130K-18T1 rotary platform?
A: You can obtain this rotary platform directly from reputable exporters, manufacturers, and suppliers based in India who specialize in industrial automation equipment.
Q: What is the typical process for installing and operating this rotary platform?
A: Installation involves securing the platform onto your desired equipment, connecting the power source, and configuring rotation settings as needed. Its straightforward design allows for quick integration and minimal maintenance.
Q: What are the efficiency features of this rotary platform?
A: With a 90% efficiency rating and a 200 W rated power, the YKW130K-18T1 minimizes energy wastage while delivering consistent performance, resulting in lower operational costs and reliable outputs for continuous use.
