Product Description

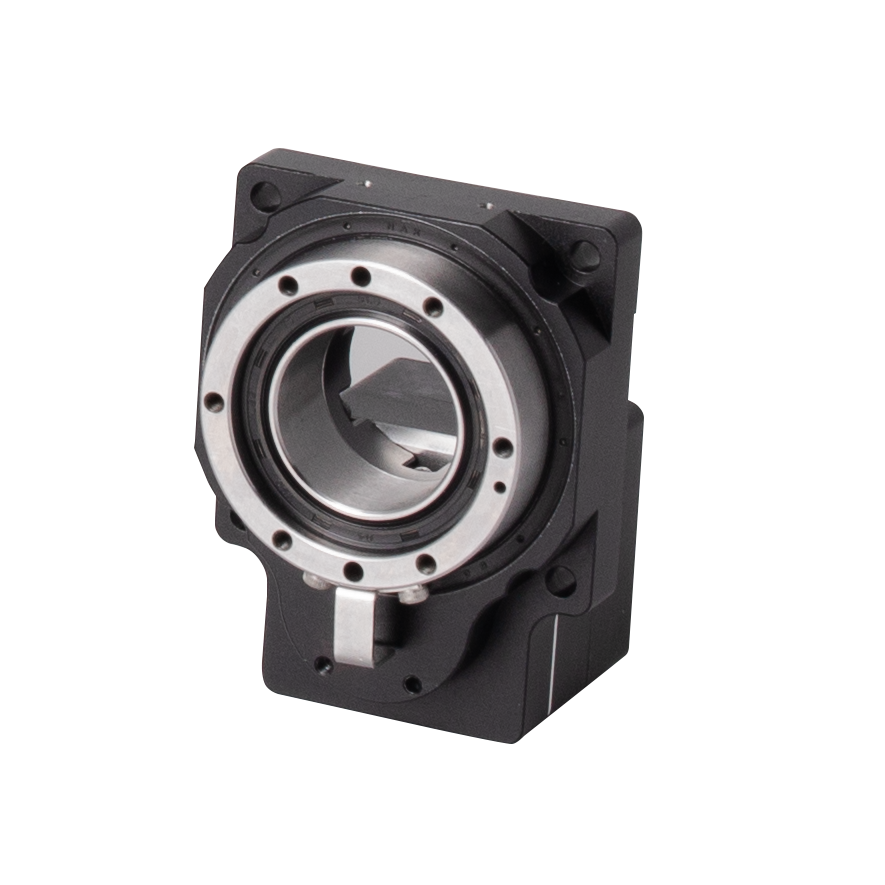

The YKW130R-30V1 rotary platform is designed to provide exceptional performance in demanding industrial applications, offering a high allowable torque of 45 Nm. Engineered for durability, it accommodates axial loads of up to 100 kg and radial forces of 60 Nm, ensuring stability and reliability during operation. Its disk rotation speed reaches up to 720/sec, supported by a reduction ratio of 30 for optimal control and efficiency.
With positioning accuracy ranging from 8 arc-min to 5 arc-min, and repetitive positioning accuracy between 30 arc-sec and 20 arc-sec, this platform ensures consistent precision across its lifespan, exceeding 15,000 cycles under intermittent use. Its motor specification features a 14mm shaft diameter, a PCD of 70, and M4 mounting threads for straightforward integration into a wide range of systems.
Weighing 4.2 kg and rated IP40 for ingress protection, the YKW130R-30V1 is ideal for controlled industrial environments such as automation systems, precision assembly lines, and inspection equipment. This rotary platform combines robustness and precision, delivering reliable motion control for advanced applications.
| Model/Specification | YKW130R-30V1 |
| Allowable torque Nm | 45 |
| Allowable axial load (Ka)kg | 100 |
| Allowable radial force (Fr)Nm | 60 |
| Allowable disk Rotation speed | 720/sec |
| Reduction ratio i | 30 |
| Positioning accuracy | 8arc-min
5arc-min |
| Repetitive positioning accuracy | 30arc-sec
20arc-sec |
| Accuracy life(intermittent operation) | 15000 |
| IP(Ingress Protection) | IP40 |
| Mass kg | 4.2 |
| Motor specification | V1:=14PCD:=PCD70M=M4 |
Engineered for ExcellenceDesigned with precision in mind, the YKW130R-30V1 rotary platform utilizes stainless steel construction for enhanced durability and stability. Its bidirectional operation and compatibility with standard sizes ensure easy integration into diverse automation applications.
High Efficiency and PerformanceOperating at an impressive 90% efficiency and a rated power of 200 W, the platform offers both power savings and reliable functionality. Its robust design is suitable for continual use in robotics and sophisticated automation systems, maximizing operational productivity.
FAQs of YKW130R-30V1 High-Precision Rotary Platform:
Q: How is the YKW130R-30V1 rotary platform typically used in automation systems?
A: This rotary platform is commonly integrated into robotics and automation systems where high-precision rotary motion is required, such as in assembly lines, pick-and-place machines, or inspection systems.
Q: What benefits does the stainless steel construction provide?
A: Stainless steel imparts superior corrosion resistance, mechanical strength, and longevity, ensuring reliable operation in demanding industrial environments.
Q: When should I choose the YKW130R-30V1 for my application?
A: Select this rotary platform when your application demands precise motion control, robust materials, high efficiency (90%), and bidirectional operation, particularly for robotics or automated machinery.
Q: Where is the YKW130R-30V1 manufactured and supplied from?
A: The platform is manufactured, supplied, and exported from India, catering to both the domestic market and international clients.
Q: What is the process for integrating this rotary platform into existing systems?
A: Integration involves mounting the platform using its standard size fittings, connecting the 200 W power source, configuring control inputs for bidirectional operation, and aligning it with your systems motion requirements.
Q: How does the bidirectional feature improve automation system performance?
A: The bidirectional function enables the rotary platform to rotate in both directions, enhancing flexibility and enabling complex movement patterns in automated setups.
Q: What are the main advantages of using this high-precision rotary platform in robotics?
A: The main advantages include increased positioning accuracy, improved energy efficiency, low maintenance due to durable materials, and adaptability to a range of automation tasks.
