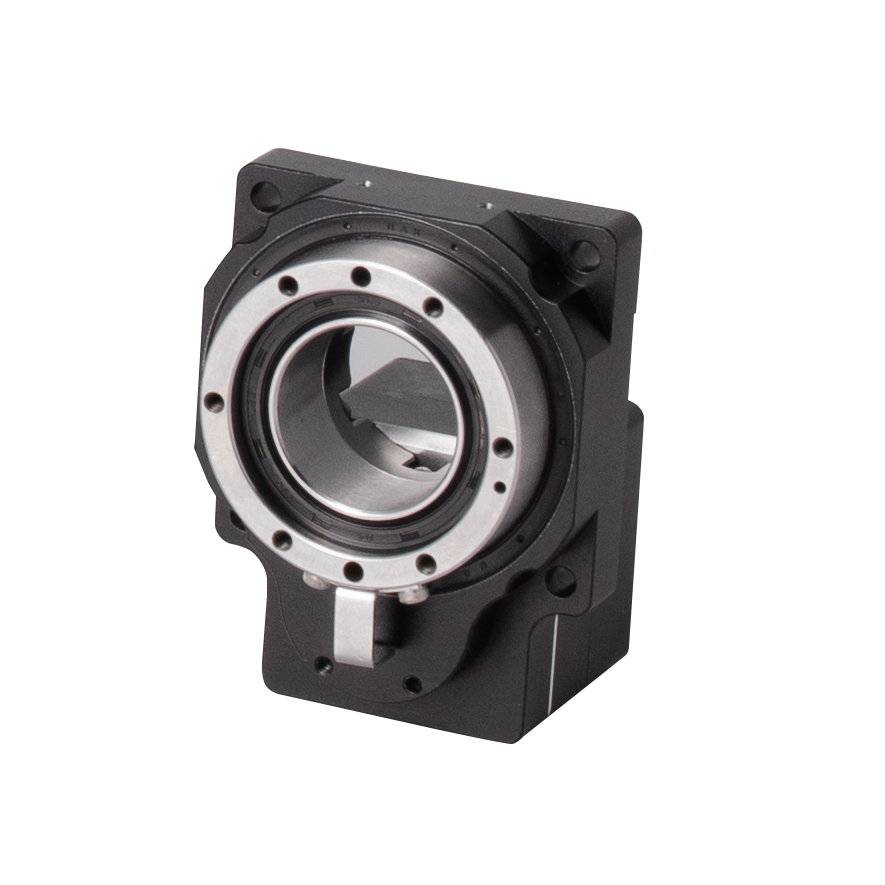

Product Description
The YKW60R-15T1 hollow rotary platform is designed for precision control in industrial automation applications. Featuring a 15:1 reduction ratio, it provides smooth, controlled motion with an allowable torque of 5 N.m. It is capable of handling axial loads up to 10 kg and radial forces of 5 N.m, making it well-suited for a range of automation processes. The platform operates with a disk rotation speed of up to 720 per second, ensuring high efficiency in fast-paced environments.
With a positioning accuracy of 8 arc-min and a repetitive positioning accuracy of 30 arc-sec, this rotary platform offers the precision required for tasks involving exact movements. Its accuracy life spans over 15,000 cycles in intermittent operation, ensuring long-term reliable performance. The IP40-rated design provides protection against dust and debris, further extending its lifespan and ensuring durability.
Constructed from high-quality materials, the YKW60R-15T1 is engineered for ease of integration into complex systems. Its hollow center allows for efficient cable routing and component placement, making it an ideal solution for robotics, packaging, and other industrial machinery. The compact form factor, weighing 1.5 kg, allows for seamless integration into various mechanical setups, maximizing system efficiency and functionality.
| Model/Specification | YKW60R-15T1 |
| Allowable torque Nm | 5 |
| Allowable axial load (Ka)kg | 10 |
| Allowable radial force (Fr)Nm | 5 |
| Allowable disk Rotation speed | 720/sec |
| Reduction ratio i | 15 |
| Positioning accuracy | 8arc-min |
| Repetitive positioning accuracy | 30arc-sec |
| Accuracy life(intermittent operation) | 15000 |
| IP(Ingress Protection) | IP40 |
| Mass kg | 1.5 |
| Motor specification | T1:=5PCD:=PCD43.8M=M3 |
Engineered for Durability and PrecisionDesigned using premium stainless steel, the YKW60R-15T1 Hollow Rotary Platform excels in harsh industrial environments. Its black finish not only enhances its appearance but also adds an extra layer of corrosion resistance, illustrating both functional and aesthetic strength.
Versatile Industrial ApplicationsThe bidirectional movement and standard size design make this rotary platform adaptable for a wide range of industrial uses. Whether its for automated assembly lines or material handling systems, its reliable efficiency ensures dependable performance every time.
FAQs of YKW60R-15T1 High-Performance Hollow Rotary Platform:
Q: How is the YKW60R-15T1 Hollow Rotary Platform typically used in industrial settings?
A: This rotary platform is commonly used for tasks that require precise rotational movement, such as robotic arms, turntables, or automation machinery, ensuring smooth and controlled operation in various industrial automation processes.
Q: What are the benefits of its stainless steel construction?
A: Stainless steel provides exceptional strength, corrosion resistance, and longevity, making the platform suitable for challenging industrial environments where durability is essential.
Q: When should I consider using a device with bidirectional capabilities?
A: Choose a bidirectional hollow rotary platform when your applications require rotation in both directions, such as positioning, indexing, and assembly operations that demand flexible movement control.
Q: Where is the YKW60R-15T1 platform manufactured and supplied from?
A: This platform is manufactured, exported, and supplied by a reliable company based in India, offering comprehensive support and distribution to meet domestic and international industrial needs.
Q: What is the process for installation and integration of this rotary platform?
A: Installation involves securely mounting the platform to your equipment, connecting the electrical components, and configuring the bidirectional motion controls according to your applications specifications. The standard size also simplifies integration into existing systems.
Q: How does the 90% efficiency rating benefit industrial operations?
A: With an impressive 90% efficiency, energy losses are minimized, translating to cost savings, reduced heat generation, and improved overall system performance in your industrial setup.
