Product Description

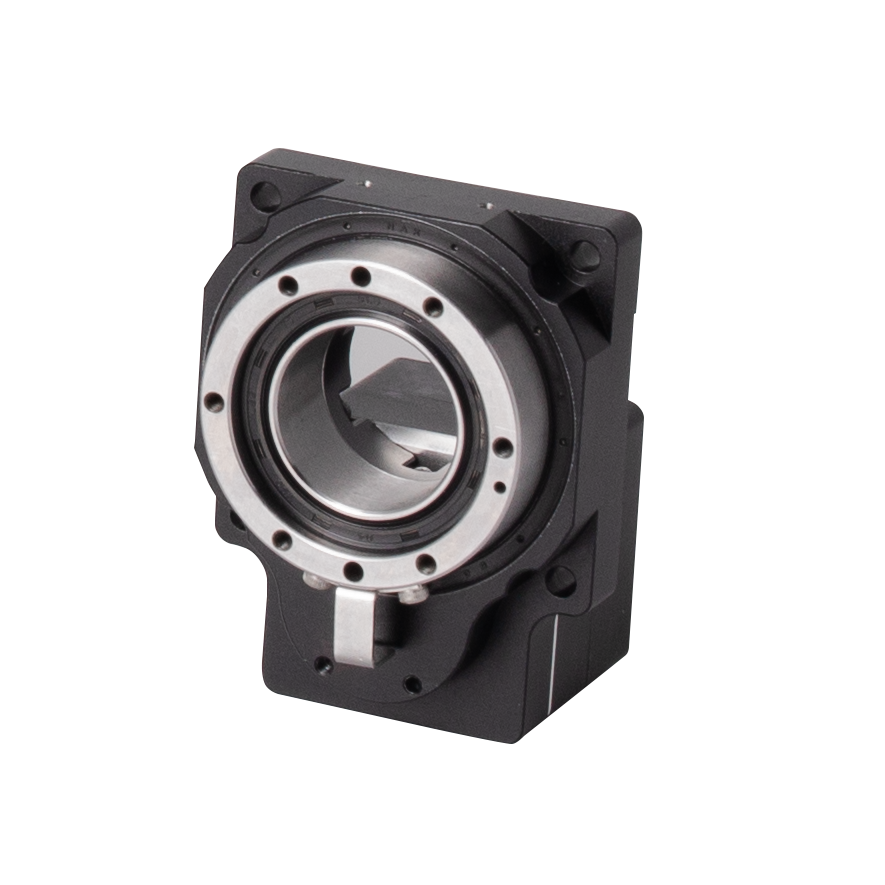

The YKW60K-10V2 Hollow Rotary Platform is engineered for high-precision rotational movements with a 10:1 reduction ratio, ideal for applications requiring fine positioning and compact form factors. With its hollow shaft design, this platform provides space-saving integration options, allowing for cables or other components to pass through while maintaining superior torque performance. The platform is perfect for robotic, automation, and industrial systems that demand high rotational accuracy and torque without compromising on size.
Key Features:
- Compact Size: The YKW60K-10V2 has a 60mm diameter, allowing it to fit into tight spaces while providing excellent performance.
- Hollow Shaft Design: The 28mm hollow shaft provides easy passage for wiring or additional components, optimizing your systems design.
- Motor Compatibility: Works seamlessly with K-type upright double teeth motors for enhanced reliability and performance.
- High Torque Capacity: Capable of handling an output torque of up to 5Nm, ideal for applications requiring high rotational force.
- Positioning Accuracy: With a positioning accuracy of 3 arc-min and repeated positioning accuracy of 15 arc-sec, the platform ensures precise, repeatable movement.
- Load Handling: Supports axial loads up to 10N and radial forces of 5Nm, making it suitable for heavy-duty applications.
- High-Speed Performance: The YKW60K-10V2 can operate at speeds of up to 200 RPM, allowing for fast and efficient rotations.
The YKW60K-10V2 hollow rotary platform is a versatile solution for applications in industrial automation, robotics, and high-precision machinery, providing high torque, precision, and space efficiency.
| model | YKW60K-10V2 |
| Size /mm | 60 |
| Reduction ratio | 10 |
| Connection mode | K- upright double teeth |
| Adaptive motor | =8PCD=46M=M4 |
| Hollow shaft diameter () | 28 |
| Allowable output torque (Nm) | 5 |
| Maximum axial load | 10 |
| Allowable radial force Fr (Nm) | 5 |
| Allowable output speed rpm | 200 |
| Positioning accuracy arc-min | 3 |
| Repeated positioning accuracy arc/s | 15 |
High-Efficiency Design for AutomationThe YKW60K-10V2 Hollow Rotary Platform is engineered for seamless integration into robotics and industrial automation setups. Its 90% efficiency rating and bidirectional movement ensure optimal power usage and flexible control, meeting the needs of modern manufacturing lines and robotic systems.
Durable Stainless Steel ConstructionCrafted from high-quality stainless steel, this rotary platform stands out for its longevity and resistance to corrosion. Its robust build guarantees stability during repeated, high-stress usage, making it a trusted component even in challenging industrial conditions.
Reliable Supply from IndiaAs an established exporter, manufacturer, and supplier based in India, we ensure consistent product quality and prompt delivery of the YKW60K-10V2 Hollow Rotary Platform. Our global distribution capabilities support a broad array of automation projects worldwide.
FAQs of YKW60K-10V2 Hollow Rotary Platform:
Q: How is the YKW60K-10V2 Hollow Rotary Platform typically used in robotics and automation systems?
A: The YKW60K-10V2 Hollow Rotary Platform is implemented in robotics and automated machinery to facilitate precise rotational movement, enabling tasks like positioning, indexing, and assembly with high accuracy and efficiency.
Q: What are the main benefits of using this stainless steel rotary platform?
A: This rotary platform offers superior durability due to its stainless steel construction, combined with 90% operational efficiency and bidirectional control. These features enhance productivity and reduce maintenance in harsh industrial settings.
Q: When should I choose the YKW60K-10V2 for my automation project?
A: Select this model when your application demands reliable, high-efficiency rotation, such as in robotics, conveyors, or automated assembly lines, especially when durability and bidirectional motion are priorities.
Q: Where can I source the YKW60K-10V2 Hollow Rotary Platform?
A: You can obtain the YKW60K-10V2 from established exporters, manufacturers, and suppliers in India who specialize in precision automation solutions and serve international markets.
Q: What is the installation process for the YKW60K-10V2 Hollow Rotary Platform?
A: Installation typically involves securing the platform to the desired position on your machine using standard mounting provisions, ensuring alignment for optimal bidirectional rotation before connecting power and control wiring.
Q: How does the rated power of 200 W benefit my equipments efficiency?
A: The 200 W rated power ensures the rotary platform delivers strong, consistent rotational force while maintaining low energy consumption, supporting overall system efficiency.
Q: Can this black-finished platform handle continuous operation in demanding environments?
A: Yes, the combination of a robust stainless steel body and high-quality engineering allows for continuous performance in rigorous industrial applications, with the black finish providing additional corrosion resistance.
