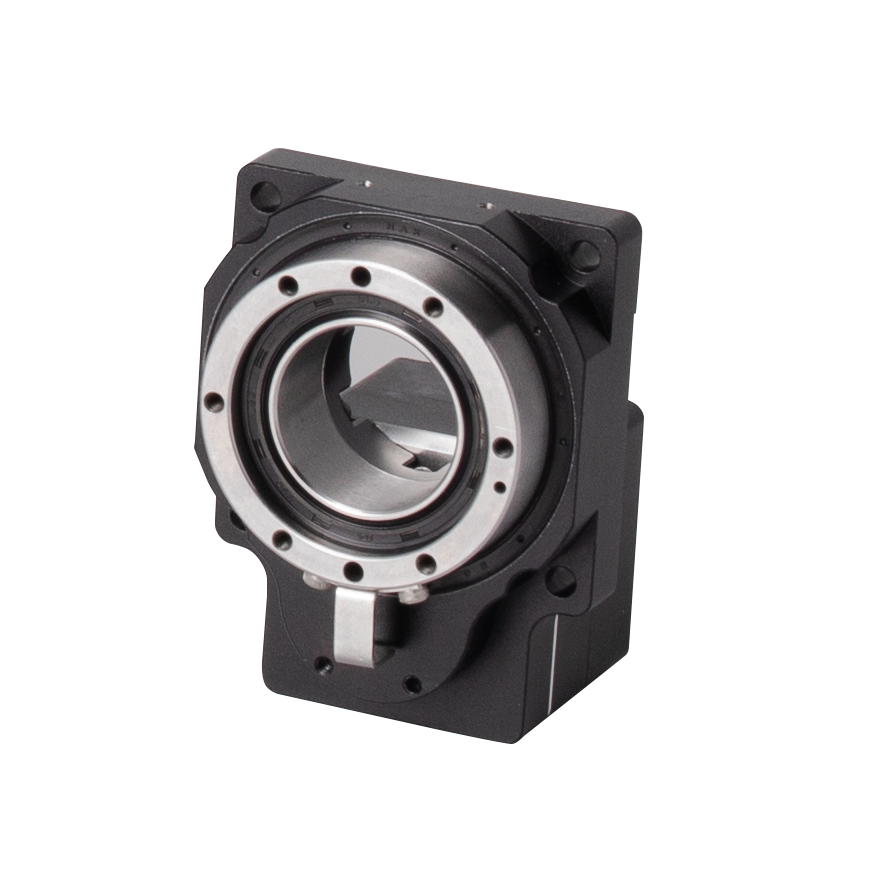

YKW60R-15V1 Precision Rotary Platform for Enhanced Control

Product Description

The YKW60R-15V1 rotary platform is designed to meet the needs of modern industrial applications requiring precise movement and robust performance. With an allowable torque of 5 Nm and the capability to handle axial loads of up to 10 kg, this platform is well-suited for tasks in robotics, automation, and material handling.

Featuring a reduction ratio of 15:1, the YKW60R-15V1 enables swift rotational speeds of up to 720 per second, facilitating rapid adjustments and enhancing operational efficiency. This characteristic is crucial for applications where quick and accurate positioning is necessary.

Precision is a key feature, as evidenced by the platform's positioning accuracy of 8 arc-min and repetitive positioning accuracy of 30 arc-sec. Such specifications guarantee consistent and reliable performance in applications that demand high levels of accuracy.

The YKW60R-15V1 boasts an impressive operational lifespan, rated for over 15,000 cycles during intermittent use, making it a durable choice for continuous operations. Its IP40 rating ensures protection against dust and other particles, contributing to its reliability in various environments.

Weighing in at just 1.5 kg, this platform is designed for easy integration into existing setups. It is compatible with motor specifications V1 (=8, PCD=PCD45, M=M3), allowing for straightforward installation.

Opt for the YKW60R-15V1 rotary platform for a perfect blend of precision, speed, and durability in your automation projects.

Model/Specification	YKW60R-15V1
Allowable torque Nm	5
Allowable axial load (Ka)kg	10
Allowable radial force (Fr)Nm	5
Allowable disk Rotation speed	720/sec
Reduction ratio i	15
Positioning accuracy	8arc-min
Repetitive positioning accuracy	30arc-sec
Accuracy life(intermittent operation)	15000
IP(Ingress Protection)	IP40
Mass kg	1.5
Motor specification	V1:=8PCD:=PCD45M=M3

Unmatched Precision for Automation

The YKW60R-15V1 Precision Rotary Platform stands out as an integral component for modern robotics and automation systems. Its bidirectional design ensures flexible and accurate movement, enabling intricate positioning and operational efficiency in automated environments. Designed to support highly demanding tasks, this platform provides consistent performance essential for advanced manufacturing and industrial automation.


Built to Last with Premium Materials

Constructed from stainless steel, the YKW60R-15V1 guarantees resistance to corrosion and mechanical stress. This robust build protects integral components, ensuring the platforms longevity even under the most intensive industrial conditions. The sleek black finish further enhances durability and aesthetic appeal, making it a reliable choice for automation professionals.
