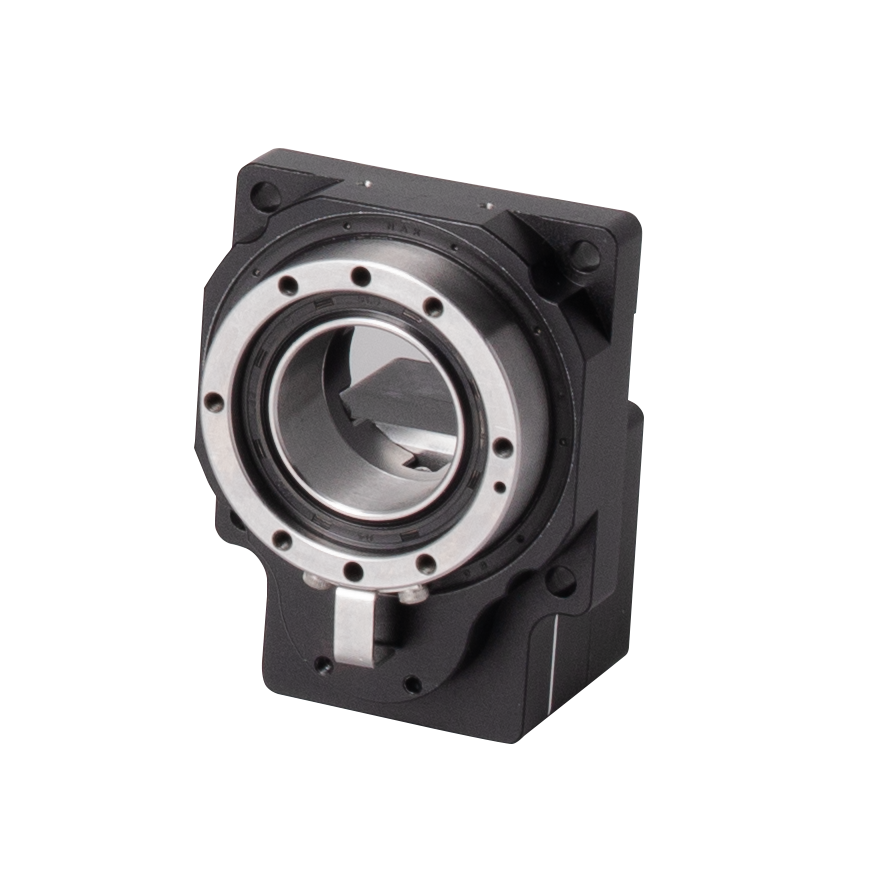

YKW60K-5V2 Hollow Rotary Platform

Product Description

The YKW60K-5V2 Hollow Rotary Platform is a compact and robust solution for high-precision rotational applications. With a 5:1 reduction ratio and a hollow shaft design, this platform is perfect for space-constrained systems while delivering exceptional torque and accuracy. Engineered for high efficiency and durability, it supports a range of industrial, robotic, and automation applications requiring precise movement and high torque.

Key Features:

• Compact Size: The YKW60K-5V2 has a 60mm diameter, making it ideal for installations with limited space while maintaining high functionality.
• Hollow Shaft Design: The 28mm hollow shaft offers easy integration with other system components, allowing for wiring or additional components to pass through the platform.
• Motor Compatibility: Compatible with K-type upright double teeth motors, providing a reliable and efficient drive system.
• High Torque Capacity: It can support a maximum output torque of 5Nm, making it suitable for demanding industrial and robotic applications.
• Positioning Accuracy: Offers high precision with a positioning accuracy of 3 arc-min and a repeated positioning accuracy of 15 arc-sec, ensuring fine-tuned movement in critical applications.
• Load Handling: Capable of withstanding axial loads of up to 10N and radial forces of 5Nm, ensuring durability and long operational life.
• High-Speed Performance: The YKW60K-5V2 supports a maximum output speed of 200 RPM, offering high-speed rotation capabilities for dynamic tasks.

The YKW60K-5V2 hollow rotary platform is ideal for applications in robotics, automation systems, and machinery where precise, high-speed rotational movement is required, while maintaining compact dimensions for space efficiency.

model	YKW60K-5V2
Size /mm	60
Reduction ratio	5
Connection mode	K- upright double teeth
Adaptive motor	=8PCD=46M=M4
Hollow shaft diameter ()	28
Allowable output torque (Nm)	5
Maximum axial load	10
Allowable radial force Fr (Nm)	5
Allowable output speed rpm	200
Positioning accuracy arc-min	3
Repeated positioning accuracy arc/s	15

Precision and Efficiency for Automation

The YKW60K-5V2 Hollow Rotary Platform delivers exceptional efficiency and smooth operation for robotics and automation. Its precision engineering and 90% efficiency rating make it an optimal choice for demanding industrial environments, contributing to improved system performance and energy savings.


Robust Stainless Steel Construction

Built with premium stainless steel, the YKW60K-5V2 offers robust durability and resistance to corrosion. Its black finish enhances its appearance while ensuring lasting operational integrity, making it a dependable component in any robotics or automation setup.


Applications in Modern Industries

Designed for versatility, this bidirectional rotary platform is suitable for a range of automation systems and robotic arms. Its adaptability to standard sizes ensures seamless integration into varied industrial applications, facilitating process optimization and consistent functionality.
