Product Description

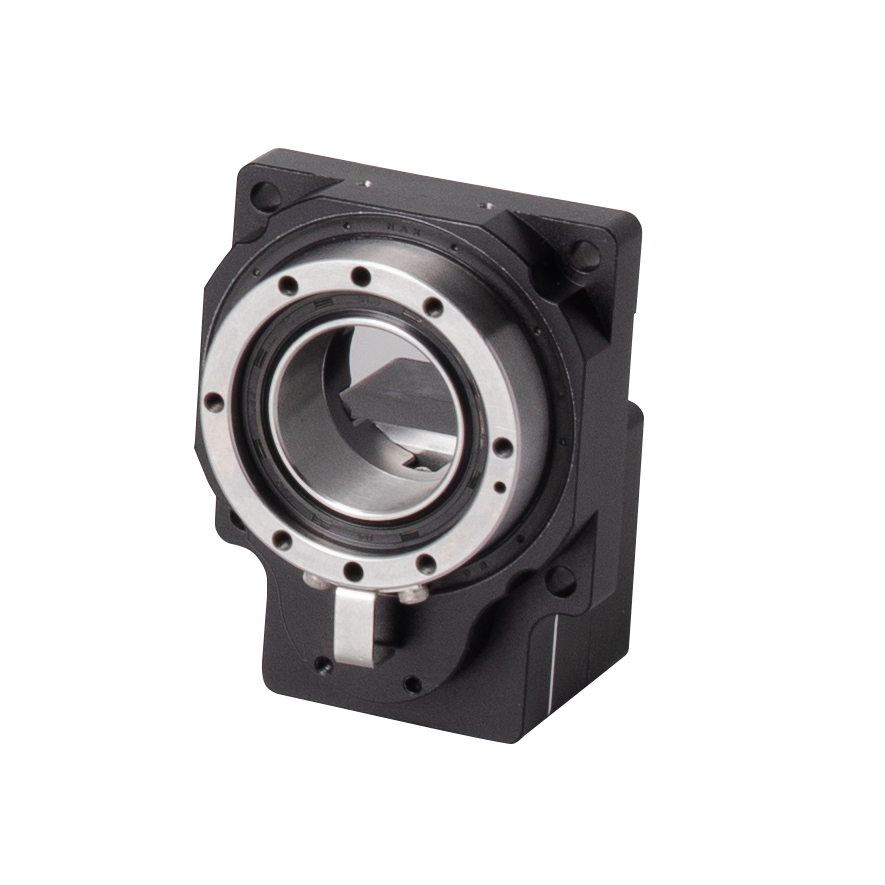

The YKW60K-10V1 rotary platform is designed to provide high precision and reliable performance for a variety of industrial applications. With an allowable torque of 5 Nm, it can handle an axial load of up to 10 kg, making it suitable for applications requiring both strength and stability. Additionally, it supports a radial force of 5 Nm, ensuring optimal performance under demanding conditions.
This platform features a reduction ratio of 10:1, allowing for disk rotation speeds of up to 720 per second. This capability is crucial for applications that require fast and accurate positioning, significantly enhancing operational efficiency.
Precision is a hallmark of the YKW60K-10V1, with a positioning accuracy of 3 arc-min and a repetitive positioning accuracy of 15 arc-sec. Such accuracy is essential for tasks that involve intricate movements and adjustments, making this platform an excellent choice for automation and robotics.
The YKW60K-10V1 is engineered for longevity, with an impressive accuracy life of over 15,000 cycles during intermittent operation. It boasts an IP40 ingress protection rating, safeguarding it against dust and debris, which extends its usability in various environments.
Weighing only 0.6 kg, this rotary platform integrates seamlessly with V1 motor specifications (=8, PCD=PCD45, M=M3), offering a lightweight yet robust solution for precise control applications.
The YKW60K-10V1 rotary platform is the ideal choice for industries that prioritize precision and efficiency, making it a versatile tool in any operational setup.
| Model/Specification | YKW60K-10V1 |
| Allowable torque Nm | 5 |
| Allowable axial load (Ka)kg | 10 |
| Allowable radial force (Fr)Nm | 5 |
| Allowable disk Rotation speed | 720/sec |
| Reduction ratio i | 10 |
| Positioning accuracy | 3arc-min |
| Repetitive positioning accuracy | 15arc-sec |
| Accuracy life(intermittent operation) | 15000 |
| IP(Ingress Protection) | IP40 |
| Mass kg | 0.6 |
| Motor specification | V1:=8PCD:=PCD45M=M3 |
Engineered for Precision MovementEvery YKW60K-10V1 rotary platform is manufactured to deliver exceptional accuracy in position control for advanced robotics and automation systems. Its stainless steel body resists wear and ensures longevity even under continuous operation, making it ideal for demanding industrial environments.
Versatility in ApplicationThe bidirectional movement, coupled with standard sizing, allows seamless integration into a wide array of automated machinery and robotic assemblies. This makes it a universal solution for process automation tasks, adding value to multiple industries.
FAQs of YKW60K-10V1 Precision Rotary Platform:
Q: How is the YKW60K-10V1 Precision Rotary Platform typically used in automation and robotics?
A: The YKW60K-10V1 is designed to provide precise, controlled rotational movement in robotics and automation systems. Its robust construction and high efficiency make it ideal for applications that require dependable and accurate positioning, such as pick-and-place machinery or automated assembly lines.
Q: What are the benefits of selecting a platform with 90% efficiency and stainless steel construction?
A: A platform with 90% efficiency ensures minimal power loss and optimized performance. Stainless steel construction guarantees durability, resistance to corrosion, and suitability for demanding industrial environments, reducing maintenance requirements and prolonging service life.
Q: When should I consider using a bidirectional rotary platform like the YKW60K-10V1?
A: Use a bidirectional rotary platform when your system requires rotational movement in both directions for flexibility, such as in complex robotic articulations or multi-directional conveyor systems. This versatility enhances productivity and operational range.
Q: Where can the YKW60K-10V1 be installed within automation systems?
A: Due to its standard sizing, the YKW60K-10V1 platform can be easily installed in various locations within robotics and automation frameworks, such as on robotic arms, rotating stages, or any setup needing precise rotational positioning.
Q: What is the typical process for integrating the rotary platform into an existing system?
A: Integration involves mounting the platform using standard installation points, connecting the power supply (200 W), and interfacing it with the systems control unit. Its compatibility with standard sizes streamlines the adaptation to existing configurations.
Q: How does using this rotary platform improve operational efficiency?
A: With its high efficiency and precision, the platform reduces operational downtime and energy costs while providing reliable, repeatable motion. This directly contributes to increased throughput and improved product quality in automated processes.
