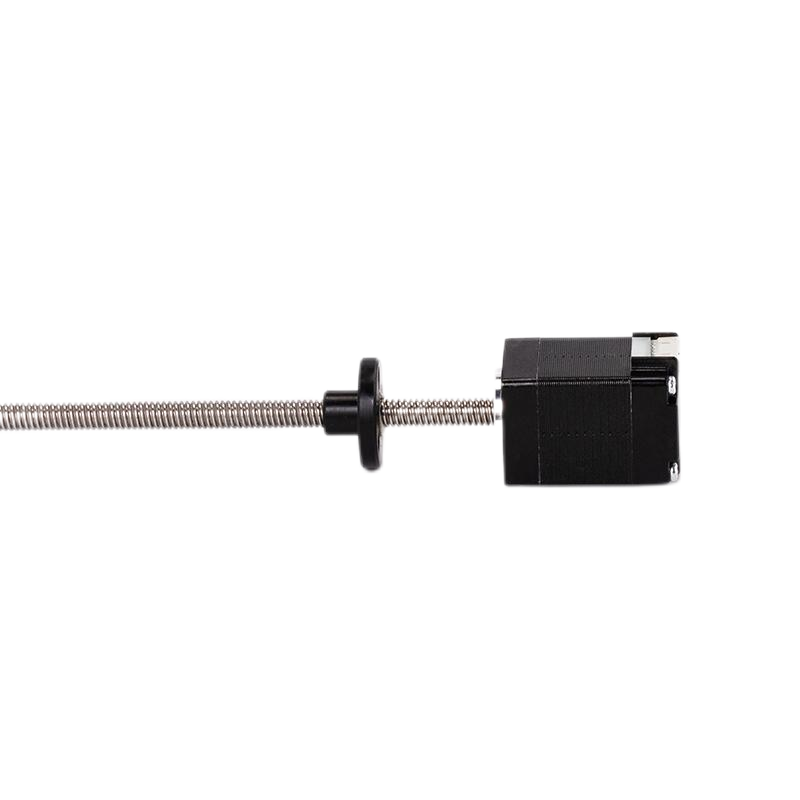

KST-20D15-01GZ-100E-0003 Lead Screw Stepper Motor

About KST-20D15-01GZ-100E-0003 Lead Screw Stepper Motor

The KST-20D15-01GZ-100E-0003 Lead Screw Stepper Motor is engineered for precision motion control, delivering 0.022Nm holding torque and a 1mm lead. With a 1.8 step angle and a fine 0.005mm step length, this motor ensures high repeatability, making it ideal for applications such as laboratory automation, medical devices, and small-scale CNC systems.

Featuring a 100mm screw length, this motor is designed for compact installations. Its Class B insulation and 100M insulation resistance ensure reliable performance in demanding environments. The lightweight design (60g) and low rotor inertia (2gcm) enable rapid start-stop cycles, while the 0.7A rated current and 4 resistance optimize energy efficiency.
