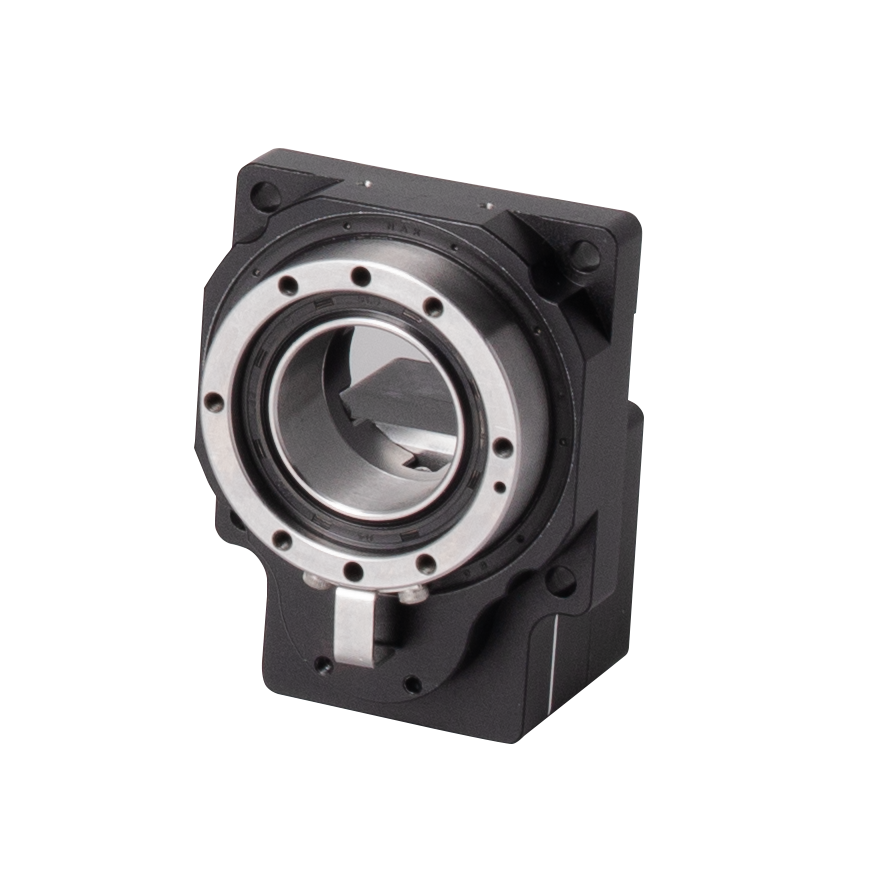

Product Description
The YKW130R-50V1 Hollow Rotary Platform is designed for high-torque, precise motion control applications. With a 130mm size and 50:1 reduction ratio, it offers 45Nm output torque, making it ideal for demanding tasks in robotics, automation, and CNC systems. The 62mm hollow shaft allows for easy integration and efficient cable management, while the platform's ability to handle 100N axial load and 60Nm radial force ensures robust performance in high-load environments.
This rotary platform provides 8 arc-min positioning accuracy and 30 arc-sec repeated positioning accuracy, guaranteeing consistent, precise motion. The platform operates at a maximum speed of 200 RPM, offering flexibility for a range of applications. It's designed to work with 14mm motor shafts and M4 mounting.
Key Features:
- Output Torque: Capable of 45Nm output torque, perfect for heavy-duty applications.
- Hollow Shaft Design: Features a 62mm hollow shaft for easy cable management and integration.
- Precision Motion: Offers 8 arc-min positioning accuracy and 30 arc-sec repeatability for precise motion control.
- Heavy Duty Load: Supports up to 100N axial load and 60Nm radial force for reliable performance.
- Speed Control: Maximum output speed of 200 RPM ensures flexibility and efficiency.
- Motor Compatibility: Compatible with 14mm motor shafts and M4 mounting for versatile motor integration.
The YKW130R-50V1 is perfect for high-precision applications where high torque, reliability, and efficient motion control are essential. Whether used in automation, robotics, or CNC machinery, this platform delivers superior performance for critical tasks.
| model | YKW130R-50V1 |
| Size /mm | 130 |
| Reduction ratio | 50 |
| Connection mode | R- corner two teeth |
| Adaptive motor | =14PCD=70M=M4 |
| Hollow shaft diameter () | 62 |
| Allowable output torque (Nm) | 45 |
| Maximum axial load | 100 |
| Allowable radial force Fr (Nm) | 60 |
| Allowable output speed rpm | 200 |
| Positioning accuracy arc-min | 8 |
| Repeated positioning accuracy arc/s | 30 |
Enhanced Precision for AutomationEnjoy high-accuracy positioning with the YKW130R-50V1 Hollow Rotary Platform. Its design supports precise control over rotation, making it ideal for both robotics and advanced automation systems. The hollow shaft allows cables or other media to pass through, streamlining integration and setup in complex machinery.
Durable Engineering for Long-Term UseConstructed from quality stainless steel, the YKW130R-50V1 offers outstanding durability and corrosion resistance. Its black finish ensures both a professional appearance and added surface protection, making it suitable even for harsh industrial environments.
FAQs of YKW130R-50V1 Hollow Rotary Platform:
Q: How can the YKW130R-50V1 Hollow Rotary Platform be integrated into robotics and automation systems?
A: The YKW130R-50V1 is designed with standard sizes to ensure compatibility with various robotics and automation setups. Its hollow shaft allows for efficient cable management, while its bidirectional rotation supports sophisticated movement control. Installation typically involves mounting the unit onto your machine and connecting power and control signals according to the systems requirements.
Q: What are the main benefits of using this rotary platform in industrial applications?
A: This device provides high efficiency (90%), reliable bidirectional movement, and robust construction from stainless steel, making it highly durable for industrial use. Its hollow-core design significantly eases the routing of cables, reducing clutter and improving overall integration flexibility.
Q: When should the YKW130R-50V1 Hollow Rotary Platform be chosen for a project?
A: Select this rotary platform when your application demands precision movement, high efficiency, and superior durability, especially in robotics and automation systems where cable management is a priority. Its 200 W rated power and robust build make it especially suitable for medium to heavy-duty roles in complex machinery.
Q: Where is this rotary platform manufactured and supplied from?
A: The YKW130R-50V1 is manufactured, exported, and supplied from India by an experienced industry-leading company known for its commitment to quality engineering and customer satisfaction.
Q: What is the process for ordering the YKW130R-50V1 Hollow Rotary Platform?
A: To order the YKW130R-50V1, contact the manufacturer or supplier in India directly. They will guide you through product selection, customization options (if required), and shipping arrangements to ensure you receive a solution tailored to your application needs.
Q: How does the hollow design of this platform benefit users?
A: The hollow design allows cables, piping, or other media to pass through the center of the rotary platform, minimizing unnecessary bends and reducing fatigue on wiring. This design not only saves space but also enhances the safety and reliability of machinery.
Q: What typical usage scenarios best suit the YKW130R-50V1 Rotary Platform?
A: This platform excels in robotics, automated assembly lines, inspection systems, and any scenario requiring reliable, repetitive rotational movement. Its efficient and robust build ensures consistent performance in demanding industrial environments.
