Product Description

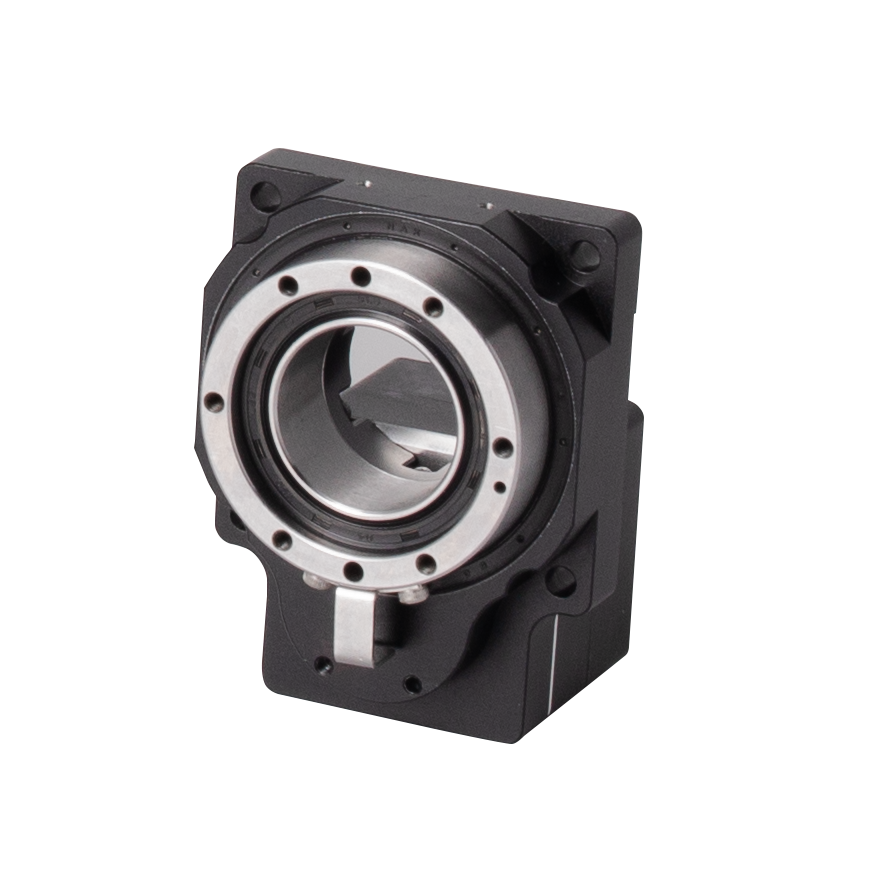

The YKW60R-15V2 Hollow Rotary Platform is a high-performance rotational platform designed for precision applications. With a 15:1 reduction ratio and a 60mm compact size, this platform is ideal for tasks requiring high accuracy and torque handling in a small form factor. The corner two-teeth (R) connection mode ensures stable and efficient torque transmission, while the 28mm hollow shaft allows for flexible routing of cables or other components through the platform, making it ideal for integration in space-constrained environments.
The platform supports an output torque of 5Nm and is capable of handling 10N axial load and 5Nm radial force. With 8 arc-min positioning accuracy and 30 arc-sec repeated positioning accuracy, it provides reliable performance in precise rotation tasks. It operates at 200 RPM, offering a balance between speed and accuracy for applications such as robotics, automated systems, and high-precision machinery.
Key Features:
- Compact and Robust: The 60mm design combines compact size with high output torque of 5Nm, making it suitable for space-sensitive applications.
- Hollow Shaft for Flexibility: The 28mm hollow shaft enables easy routing of cables and components, optimizing space in automated systems.
- High Precision: Positioning accuracy of 8 arc-min and repeated accuracy of 30 arc-sec, ensuring consistent and reliable performance.
- Torque and Load Handling: Capable of handling an output torque of 5Nm, with axial loads up to 10N and radial forces of 5Nm.
- Motor Compatibility: Designed to work with motors with an 8mm shaft diameter, 46mm PCD, and M4 motor mounting, facilitating easy integration into motion systems.
- Speed Performance: The platform supports a maximum output speed of 200 RPM, suitable for a range of industrial and robotic applications.
The YKW60R-15V2 rotary platform is perfect for high-precision and space-constrained environments, providing precise rotational movement for robotics, automation, and other precision machinery.
| model | YKW60R-15V2 |
| Size /mm | 60 |
| Reduction ratio | 15 |
| Connection mode | R- corner two teeth |
| Adaptive motor | =8PCD=46M=M4 |
| Hollow shaft diameter () | 28 |
| Allowable output torque (Nm) | 5 |
| Maximum axial load | 10 |
| Allowable radial force Fr (Nm) | 5 |
| Allowable output speed rpm | 200 |
| Positioning accuracy arc-min | 8 |
| Repeated positioning accuracy arc/s | 30 |
Precision Engineering for AutomationThe YKW60R-15V2 Hollow Rotary Platform excels in delivering precise rotational movement in robotics and automation systems. Engineered from premium stainless steel, it guarantees both longevity and reliable performance. Its black-coated exterior not only offers corrosion resistance but also fits seamlessly within modern industrial design aesthetics, making it an excellent choice for companies focusing on efficiency and durability.
Optimized Bidirectional MotionEquipped to handle bidirectional motion, the YKW60R-15V2 supports complex automation tasks that demand flexible orientation and rotation. Its high efficiency of 90% ensures minimal energy loss, optimizing system productivity and reducing operational costs. Integration into standard-sized setups is straightforward, making this unit suitable for diverse industrial requirements in India and abroad.
FAQs of YKW60R-15V2 Hollow Rotary Platform:
Q: How can the YKW60R-15V2 Hollow Rotary Platform be used in automation systems?
A: The platform can be integrated as a key component in automation systems, providing accurate and efficient rotational movement essential for various robotic applications and material handling processes.
Q: What benefits does the bidirectional functionality offer?
A: Bidirectional rotation allows the platform to move in both directions, enabling flexible positioning and improved adaptability in robotics and automated machinery, ultimately increasing productivity and system versatility.
Q: When should I consider using a stainless steel rotary platform?
A: A stainless steel rotary platform is ideal when your application demands high durability, corrosion resistance, and reliable operation in environments where these factors are crucial, such as in industrial robotics or automated assembly lines.
Q: Where is the YKW60R-15V2 Hollow Rotary Platform manufactured and exported from?
A: This rotary platform is manufactured, supplied, and exported by a leading company based in India, ensuring compliance with international quality standards and reliable global distribution.
Q: What is the process for integrating this rotary platform into an existing system?
A: Integration typically involves mounting the platform within your setup, connecting it to the motion control system, and configuring it to match the applications specific motion requirements, which is simplified by its standard sizing.
Q: How does the 90% efficiency of the YKW60R-15V2 impact automation systems?
A: With 90% efficiency, the platform minimizes energy loss during operation, thus enhancing system performance, reducing energy costs, and supporting sustainable, long-term operations.
